Description

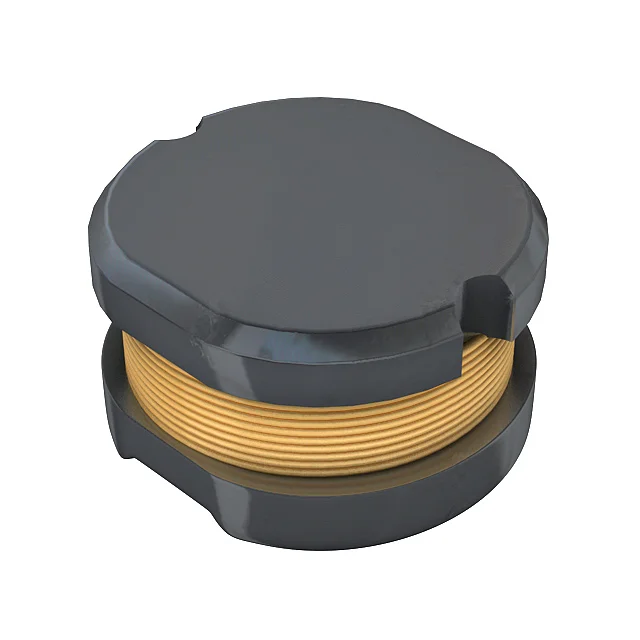

FIXED IND 33UH 300MA 1.82 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRU2013-330Y.
SRU2013-330Y has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRU2013-330Y is rated for 300 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRU2013-330Y lists a DC resistance of 1.82Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRU2013-330Y uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRU2013-330Y to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 33 µH |
| Tolerance | ±30% |
| Current Rating | 300 mA |
| DC Resistance (DCR) | 1.82Ohm Max |
| Saturation Current | 250mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33UH 300MA 1.82 OHM |
| Series | SRU2013 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 12 @ 2.52MHz |
| Self Resonant Frequency | 20MHz |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.059" (1.50mm) |
