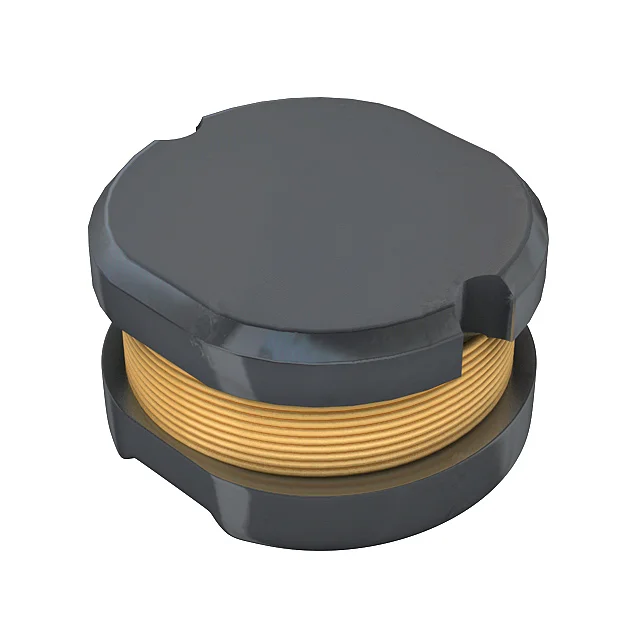

FIXED IND 47UH 250MA 2.86 OHM
| Inductance | 47 µH |
| Tolerance | ±30% |
| Current Rating | 250 mA |
| DC Resistance (DCR) | 2.86Ohm Max |
| saturationCurrent | 230mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.110" L x 0.110" W (2.80mm x 2.80mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 47UH 250MA 2.86 OHM |
| Series | SRU2013 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 14 @ 2.52MHz |
| selfResonantFreq | 15MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.059" (1.50mm) |
| features | - |
