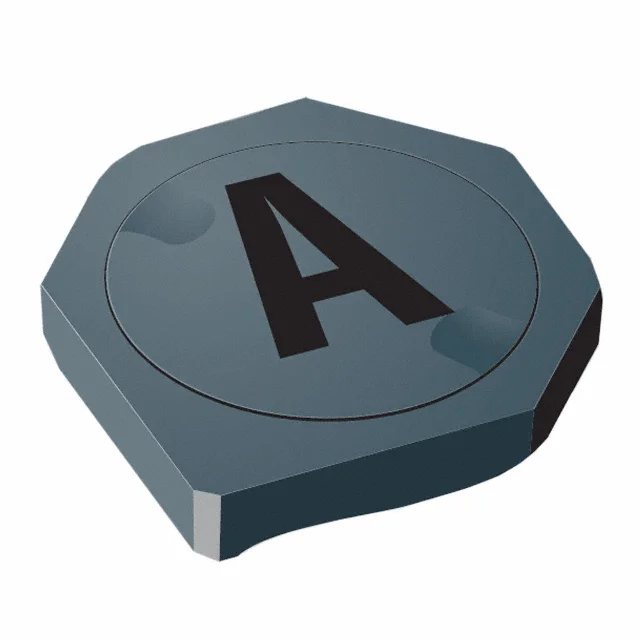

FIXED IND 4.7UH 480MA 290 MOHM
| Inductance | 4.7 µH |
| Tolerance | ±30% |
| Current Rating | 480 mA |
| DC Resistance (DCR) | 290mOhm Max |
| saturationCurrent | 500mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 4.7UH 480MA 290 MOHM |
| Series | SRU3009 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 9 @ 7.96MHz |
| selfResonantFreq | 100MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.041" (1.05mm) |
| features | - |
