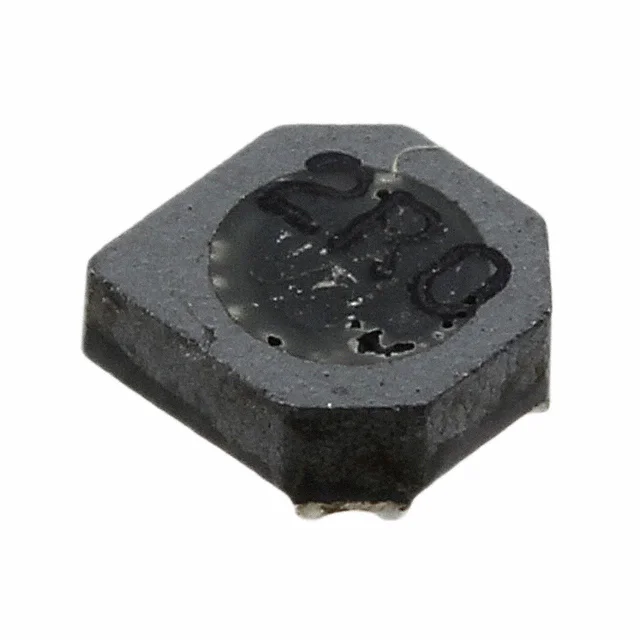

FIXED IND 3UH 1A 135 MOHM SMD
| Inductance | 3 µH |
| Tolerance | ±30% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 135mOhm Max |
| saturationCurrent | 1.1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 3UH 1A 135 MOHM SMD |
| Series | SRU3014 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 12 @ 7.96MHz |
| selfResonantFreq | 80MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.063" (1.60mm) |
| features | - |
