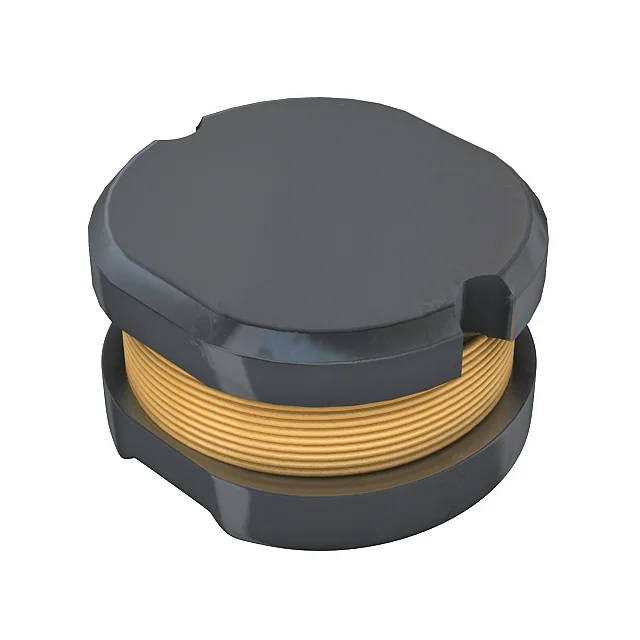

Description
FIXED IND 33UH SURFACE MOUNT
Specifications
Inductance
33 µH
Dimensions
0.138" L x 0.130" W (3.50mm x 3.30mm)
Parameter Guide
Understand the key electrical and mechanical specifications for SRU3028-330MH.
Inductance
33 µH
SRU3028-330MH has an inductance value of 33 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Package / Case
Nonstandard
SRU3028-330MH uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRU3028-330MH to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 33 µH |
| Tolerance | ±30% |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33UH SURFACE MOUNT |
| Series | SRU3028 |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
