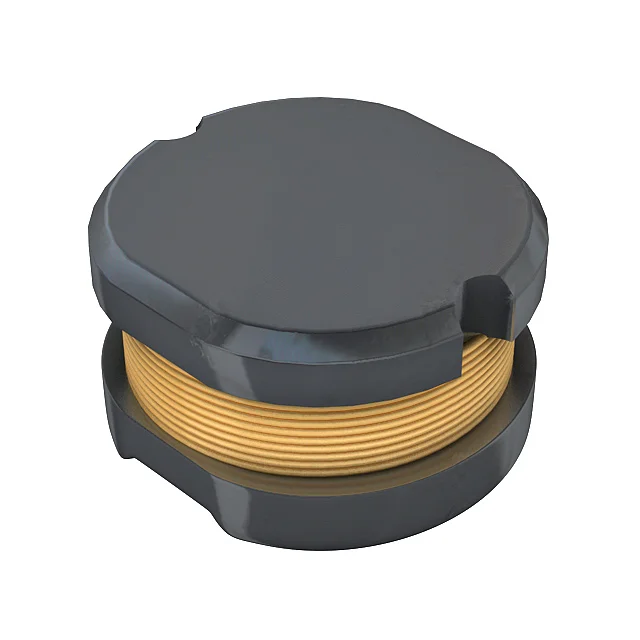

FIXED IND 33UH 470MA 450 MOHM
| Inductance | 33 µH |
| Tolerance | ±30% |
| Current Rating | 470 mA |
| DC Resistance (DCR) | 450mOhm |
| saturationCurrent | 480mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 33UH 470MA 450 MOHM |
| Series | SRU3028 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 20 @ 2.52MHz |
| selfResonantFreq | 10MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
