Description

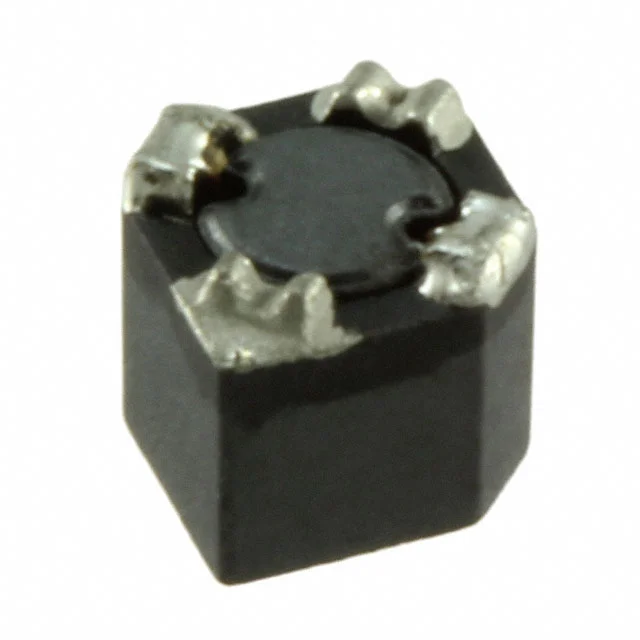

FIXED IND 15UH 660MA 290 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for SRU3028A-150Y.
SRU3028A-150Y has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
SRU3028A-150Y is rated for 660 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
SRU3028A-150Y lists a DC resistance of 290mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
SRU3028A-150Y uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from SRU3028A-150Y to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±30% |
| Current Rating | 660 mA |
| DC Resistance (DCR) | 290mOhm Max |
| Saturation Current | 720mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.138" L x 0.130" W (3.50mm x 3.30mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 15UH 660MA 290 MOHM |
| Series | SRU3028A |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Shielded |
| Q @ Frequency | 18 @ 2.52MHz |
| Self Resonant Frequency | 25MHz |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.118" (3.00mm) |
