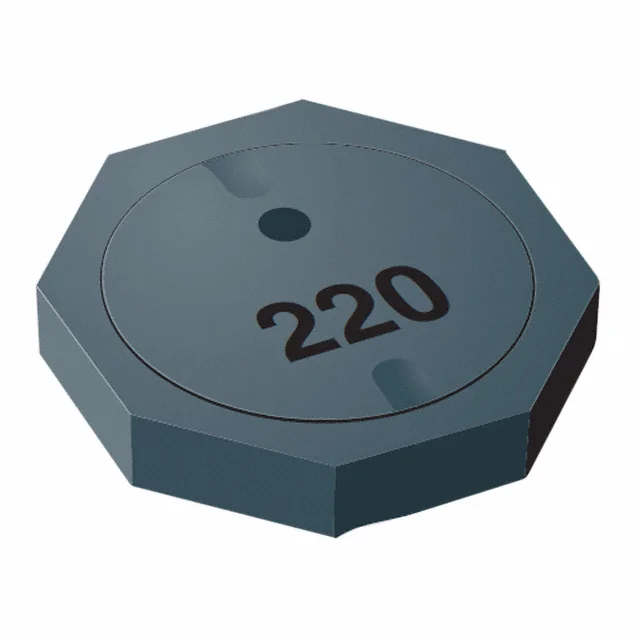

FIXED IND 10UH 700MA 170 MOHM
| Inductance | 10 µH |
| Tolerance | ±30% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 170mOhm |
| saturationCurrent | 580mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.205" L x 0.205" W (5.20mm x 5.20mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 10UH 700MA 170 MOHM |
| Series | SRU5011 |
| productStatus | Obsolete |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 12 @ 7.96MHz |
| selfResonantFreq | 50MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.047" (1.20mm) |
| features | - |
