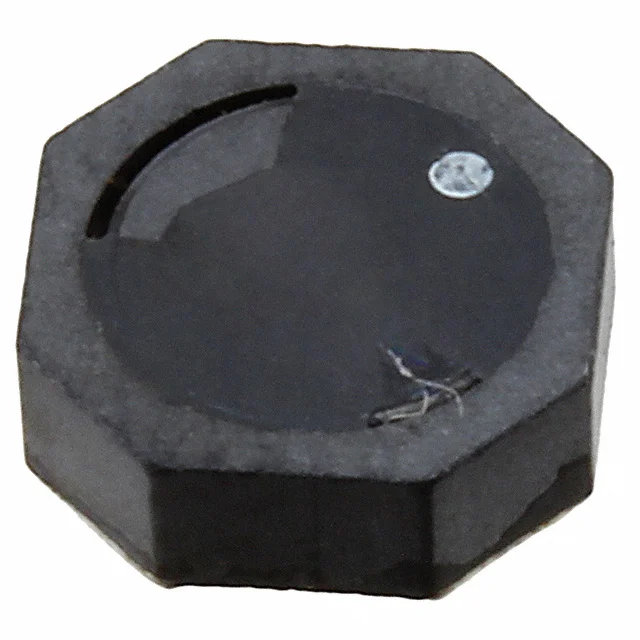

FIXED IND 150UH 540MA 770 MOHM
| Inductance | 150 µH |
| Tolerance | ±30% |
| Current Rating | 540 mA |
| DC Resistance (DCR) | 770mOhm Max |
| saturationCurrent | 280mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.256" L x 0.244" W (6.50mm x 6.20mm) |
| Case / Size | Nonstandard |
| Supplier | Bourns Inc. |
| Description | FIXED IND 150UH 540MA 770 MOHM |
| Series | SRU6025 |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Shielded |
| qFactor | 30 @ 2.52MHz |
| selfResonantFreq | 5MHz |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.110" (2.80mm) |
| features | - |
