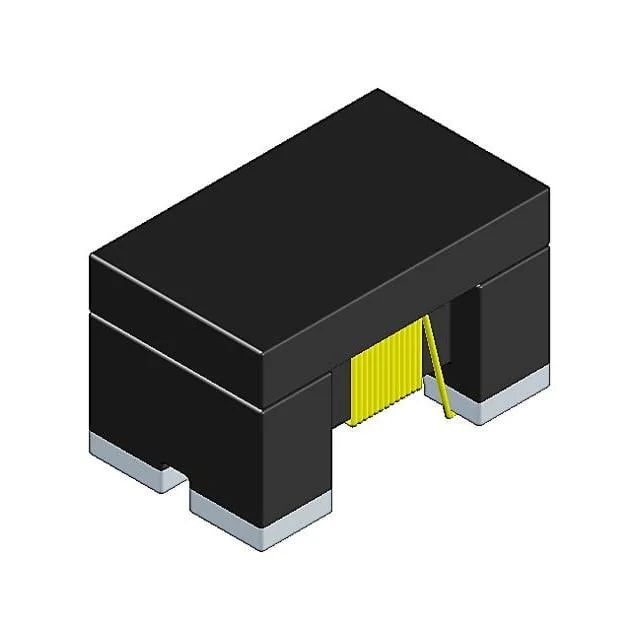

FIXED IND 6.8UH 700MA 145 MOHM
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 145mOhm Max |
| saturationCurrent | 420mA |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.087" L x 0.055" W (2.20mm x 1.40mm) |
| Case / Size | 0805 (2012 Metric) |
| Supplier | TAI-TECH |
| Description | FIXED IND 6.8UH 700MA 145 MOHM |
| Series | - |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 14 @ 7.9MHz |
| selfResonantFreq | 46MHz |
| ratings | - |
| testFrequency | 7.9 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 0805 |
| heightMax | 0.055" (1.40mm) |
| features | - |
