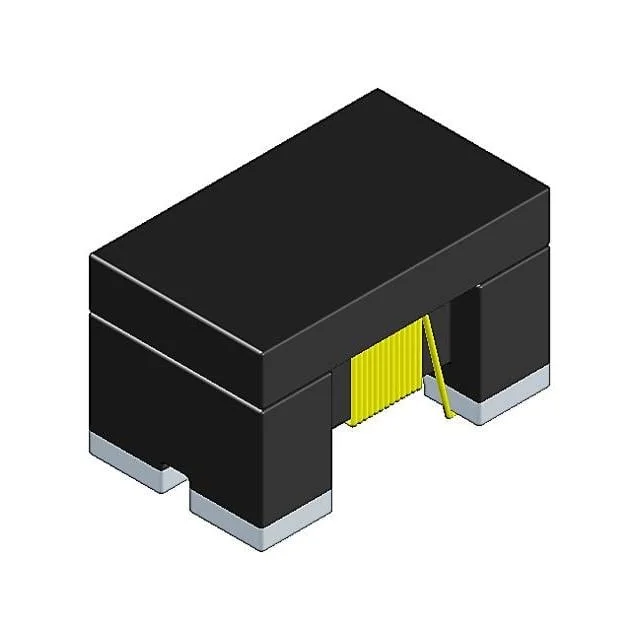

FIXED IND 6.8UH 660MA 300 MOHM
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 660 mA |
| DC Resistance (DCR) | 300mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.142" L x 0.110" W (3.60mm x 2.80mm) |
| Case / Size | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 6.8UH 660MA 300 MOHM |
| Series | SWF3225CF |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 10 @ 7.96MHz |
| selfResonantFreq | 34MHz |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.102" (2.60mm) |
| features | - |
