Description

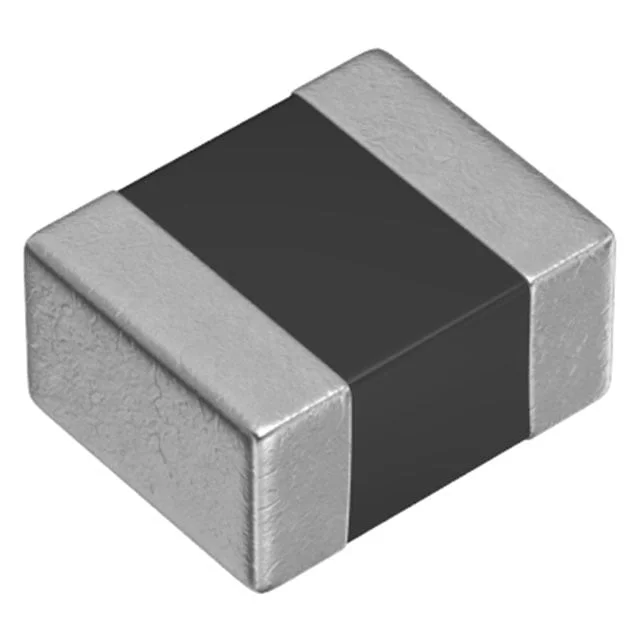

FIXED IND 100NH 8A 9 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for TFM252012ALMAR10MTAA.
TFM252012ALMAR10MTAA has an inductance value of 100 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
TFM252012ALMAR10MTAA is rated for 8 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
TFM252012ALMAR10MTAA lists a DC resistance of 9mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
TFM252012ALMAR10MTAA uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from TFM252012ALMAR10MTAA to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 100 nH |
| Tolerance | ±20% |
| Current Rating | 8 A |
| DC Resistance (DCR) | 9mOhm Max |
| Saturation Current | 10A |
| Operating Temperature | -55°C ~ 150°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | TDK |
| Description | FIXED IND 100NH 8A 9 MOHM SMD |
| Series | TFM-ALMA |
| Product Status | Active |
| Type / Construction | Thin Film |
| Core Material | Metal |
| Shielding | Shielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.047" (1.20mm) |
