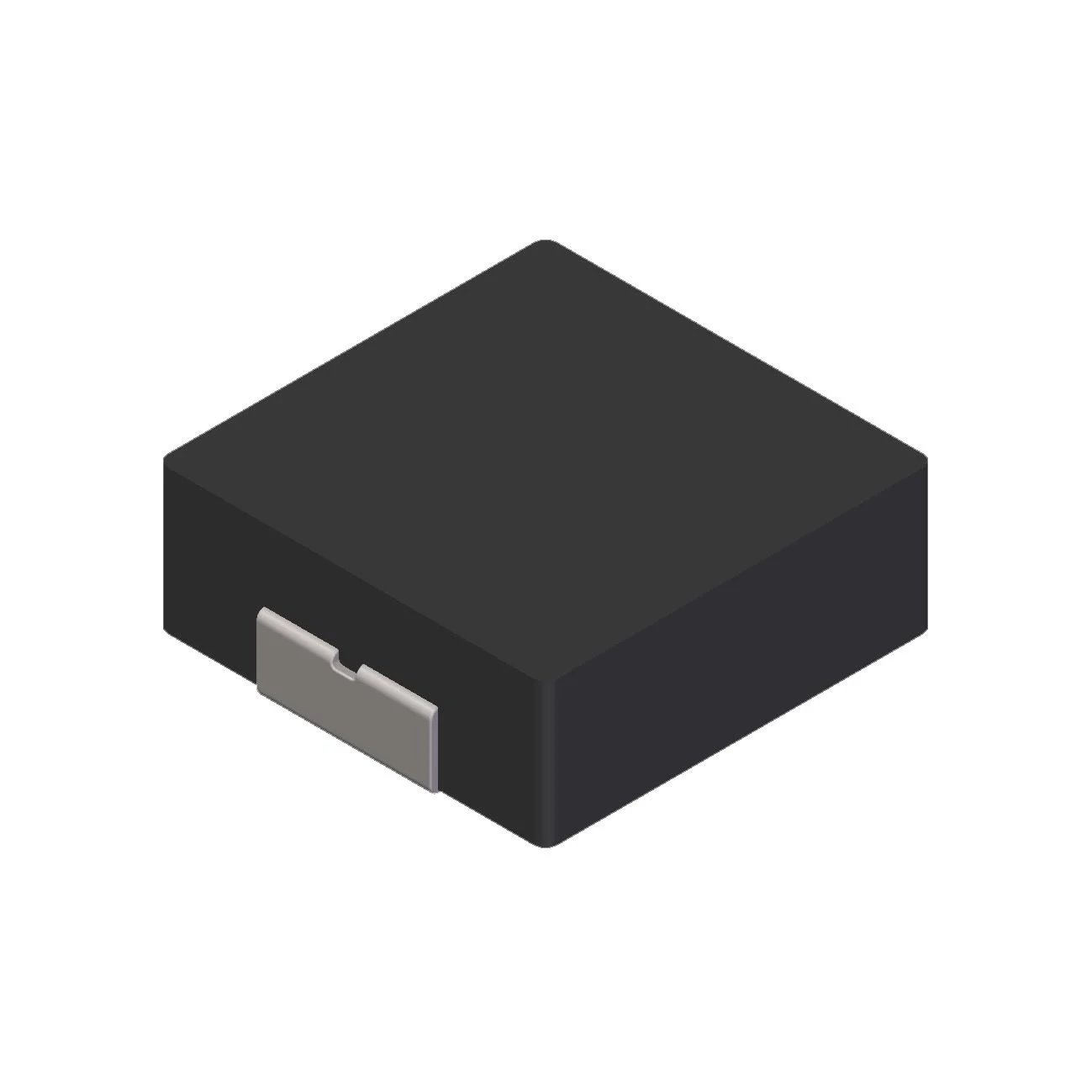

FIXED IND 4.7UH 1.3A 238 MOHM
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 1.3 A |
| DC Resistance (DCR) | 238mOhm Max |
| saturationCurrent | 1.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.130" L x 0.122" W (3.30mm x 3.10mm) |
| Case / Size | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 4.7UH 1.3A 238 MOHM |
| Series | THMA0301S |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.039" (1.00mm) |
| features | - |
