Description

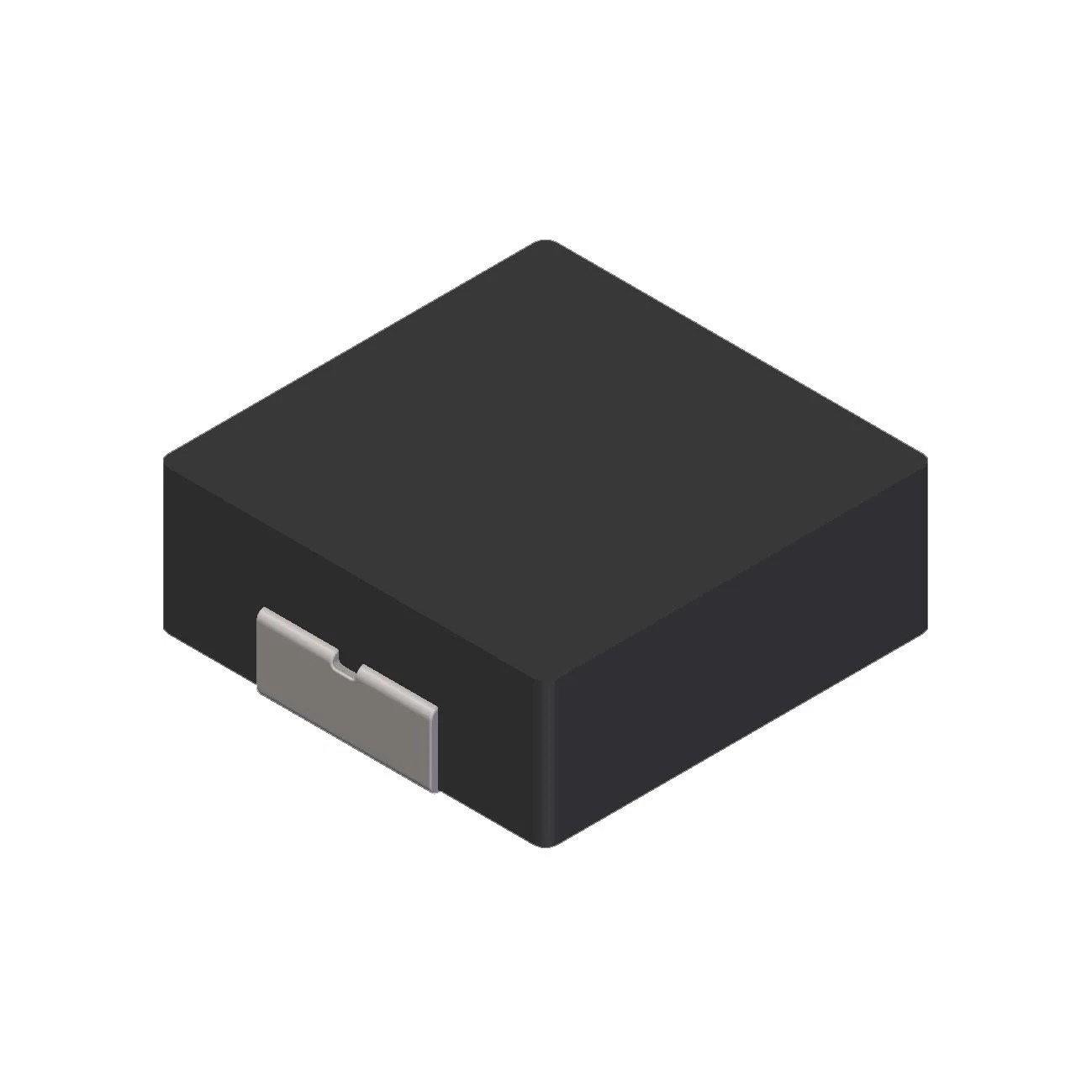

FIXED IND 6.8UH 1.5A 312 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for THMA040HS-6R8MN.
THMA040HS-6R8MN has an inductance value of 6.8 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
THMA040HS-6R8MN is rated for 1.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
THMA040HS-6R8MN lists a DC resistance of 312mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
THMA040HS-6R8MN uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from THMA040HS-6R8MN to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 1.5 A |
| DC Resistance (DCR) | 312mOhm Max |
| Saturation Current | 1.8A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.169" L x 0.161" W (4.30mm x 4.10mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 6.8UH 1.5A 312 MOHM |
| Series | THMA040HS |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Metal |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.031" (0.80mm) |
