Description

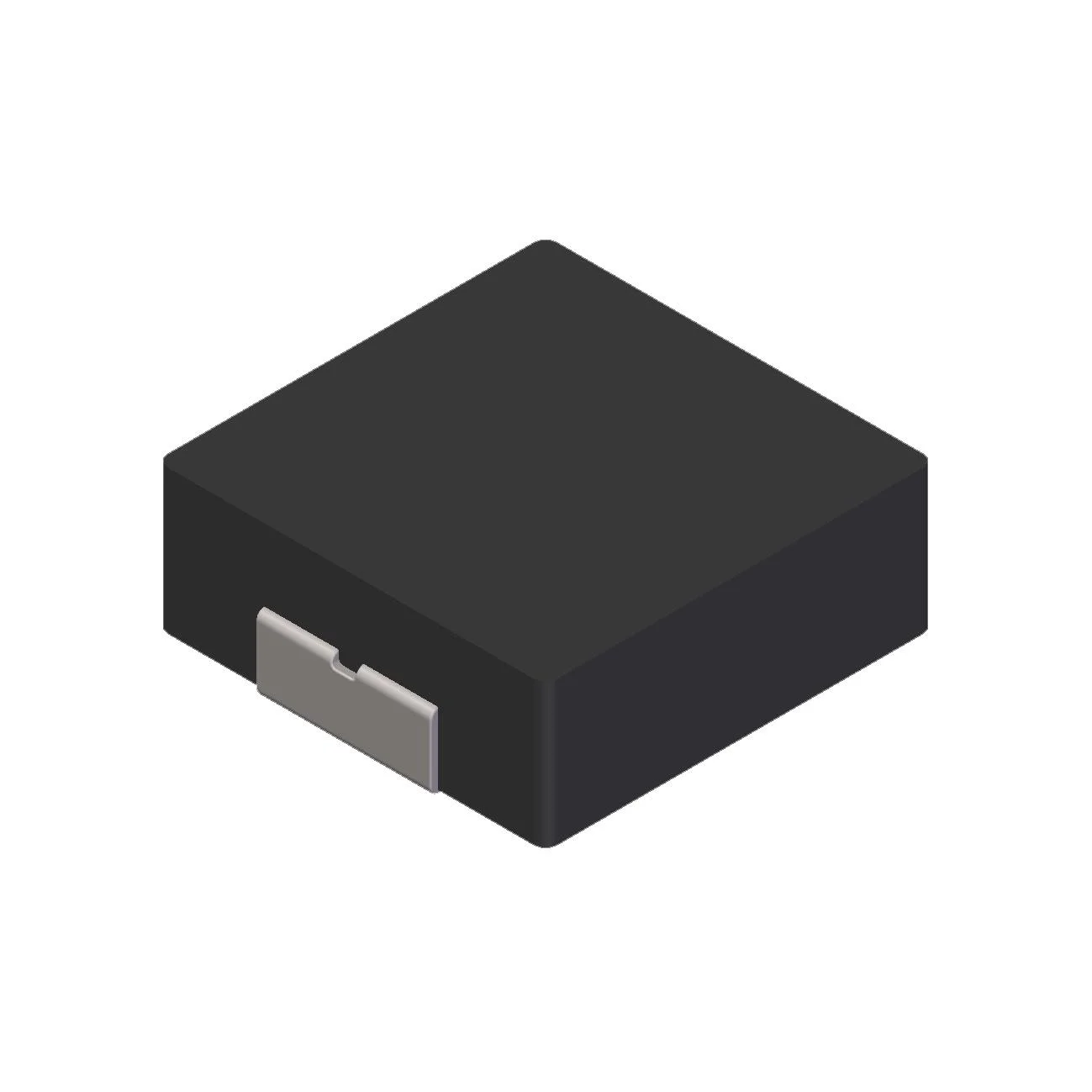

FIXED IND 220NH 14A 4.9 MOHM SMD
Specifications
Inductance
220 nH
Current Rating
14 A
DC Resistance (DCR)
4.9mOhm Max
Dimensions
0.165" L x 0.161" W (4.20mm x 4.10mm)
Product Attributes
Manufacturer Verified
Last verified: 6/21/2026| Inductance | 220 nH |
| Tolerance | ±20% |
| Current Rating | 14 A |
| DC Resistance (DCR) | 4.9mOhm Max |
| saturationCurrent | 13A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.165" L x 0.161" W (4.20mm x 4.10mm) |
| Case / Size | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 220NH 14A 4.9 MOHM SMD |
| Series | THMA0421SP |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Metal |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.083" (2.10mm) |
| features | - |
