Description

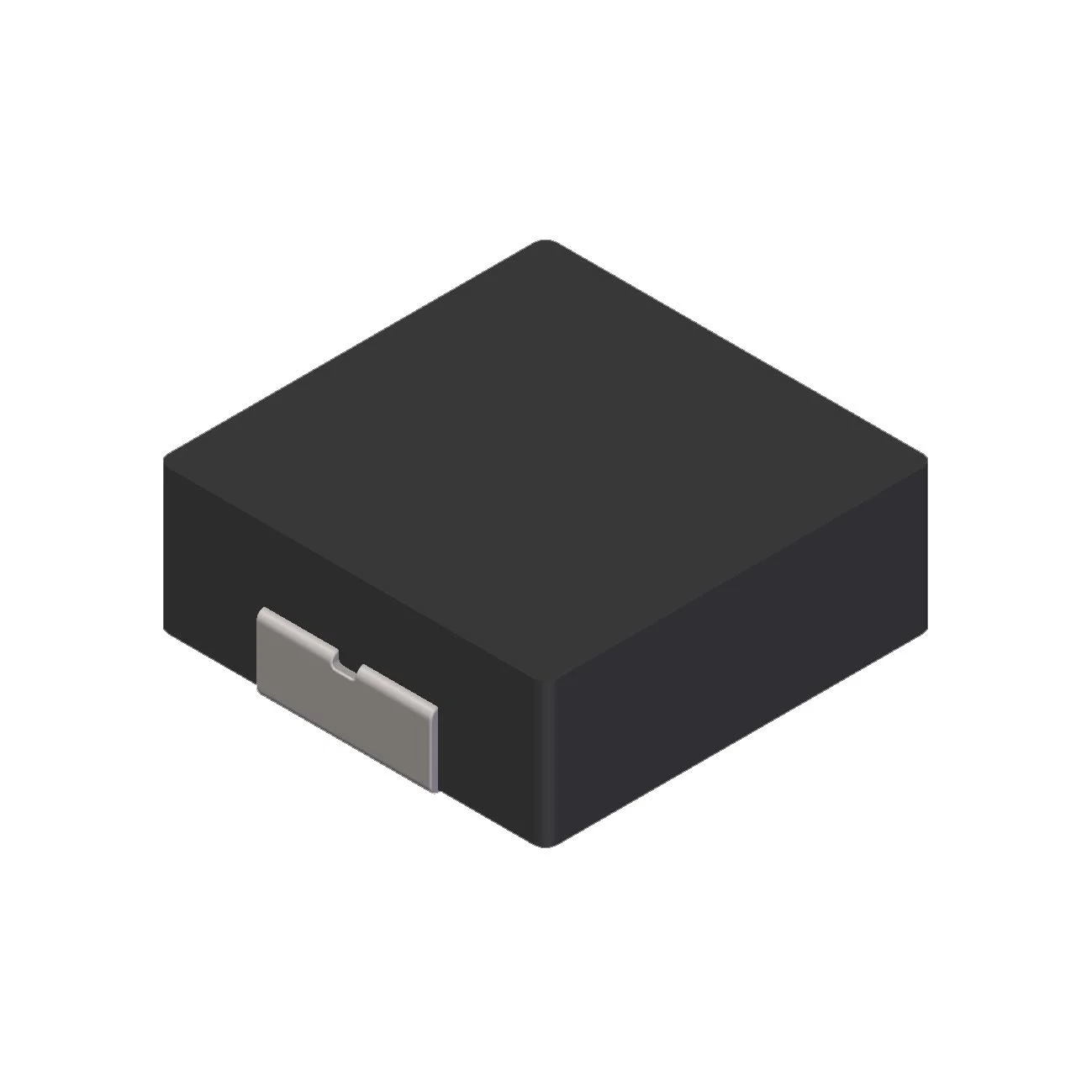

FIXED IND 1UH 9.5A 13.8 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for THMC0421SP-1R0MG.
THMC0421SP-1R0MG has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
THMC0421SP-1R0MG is rated for 9.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
THMC0421SP-1R0MG lists a DC resistance of 13.8mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
THMC0421SP-1R0MG uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from THMC0421SP-1R0MG to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 9.5 A |
| DC Resistance (DCR) | 13.8mOhm Max |
| Saturation Current | 9.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.169" L x 0.161" W (4.30mm x 4.10mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 1UH 9.5A 13.8 MOHM SMD |
| Series | THMC0421SP-G |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Metal |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.083" (2.10mm) |
