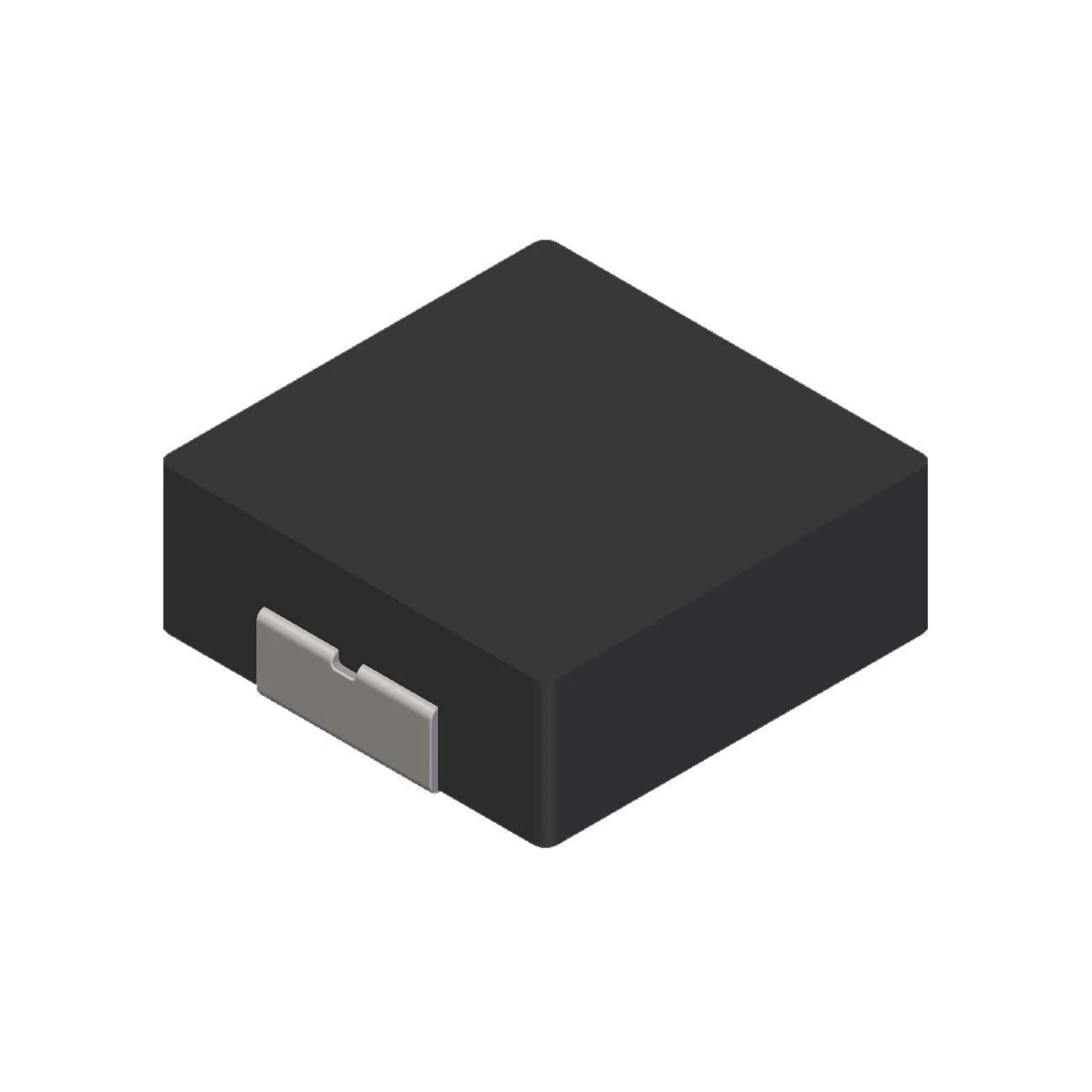

FIXED IND 2.2UH 6.5A 30 MOHM SMD
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 6.5 A |
| DC Resistance (DCR) | 30mOhm Max |
| saturationCurrent | 6.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.169" L x 0.161" W (4.30mm x 4.10mm) |
| Case / Size | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 2.2UH 6.5A 30 MOHM SMD |
| Series | THMC0421SP-G |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Metal |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.083" (2.10mm) |
| features | - |
