Description

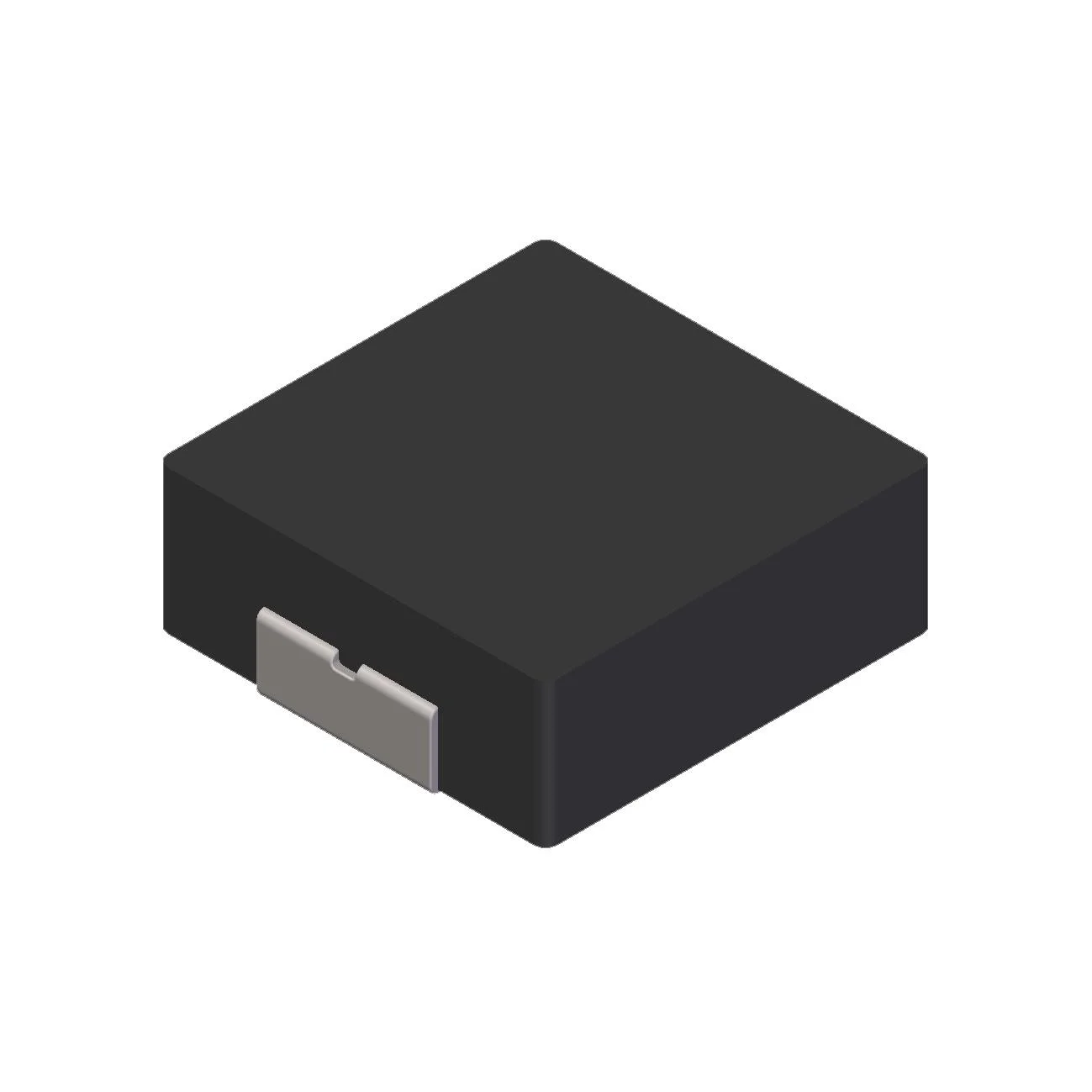

FIXED IND 330NH 13A 5.8 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for THMC0421SP-R33MG.
THMC0421SP-R33MG has an inductance value of 330 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
THMC0421SP-R33MG is rated for 13 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
THMC0421SP-R33MG lists a DC resistance of 5.8mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
THMC0421SP-R33MG uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from THMC0421SP-R33MG to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating | 13 A |
| DC Resistance (DCR) | 5.8mOhm Max |
| Saturation Current | 13A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.169" L x 0.161" W (4.30mm x 4.10mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 330NH 13A 5.8 MOHM SMD |
| Series | THMC0421SP-G |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Metal |
| Shielding | Unshielded |
| Inductance Test Frequency | 100 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.083" (2.10mm) |
