Description

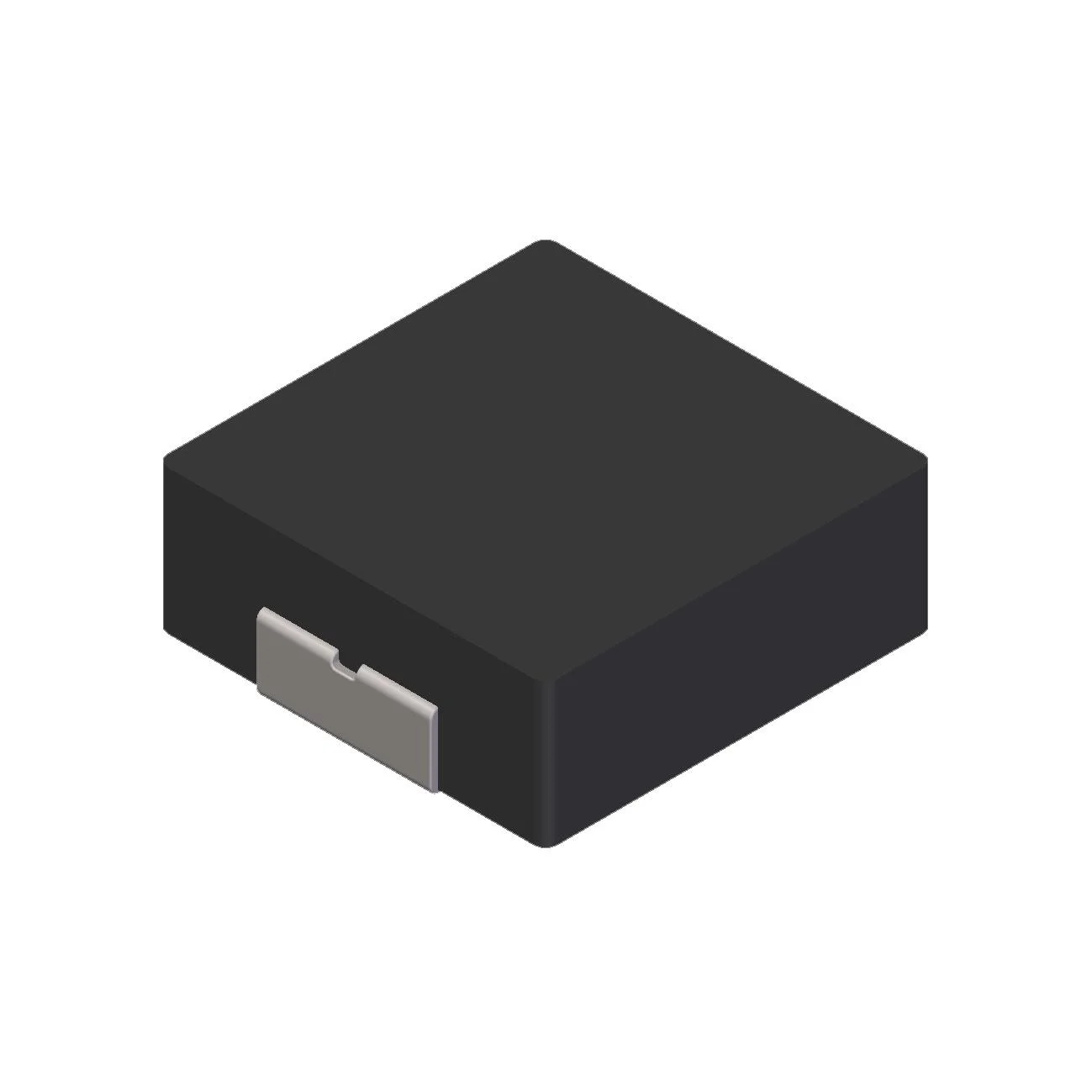

FIXED IND 6.8UH 6A 50 MOHM SMD
Specifications
Inductance
6.8 µH
Current Rating
6 A
DC Resistance (DCR)
50mOhm Max
Dimensions
0.224" L x 0.205" W (5.70mm x 5.20mm)
Product Attributes
Manufacturer Verified
Last verified: 6/21/2026| Inductance | 6.8 µH |
| Tolerance | ±20% |
| Current Rating | 6 A |
| DC Resistance (DCR) | 50mOhm Max |
| saturationCurrent | 6.7A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.224" L x 0.205" W (5.70mm x 5.20mm) |
| Case / Size | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 6.8UH 6A 50 MOHM SMD |
| Series | THMC0503SP |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Metal |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
