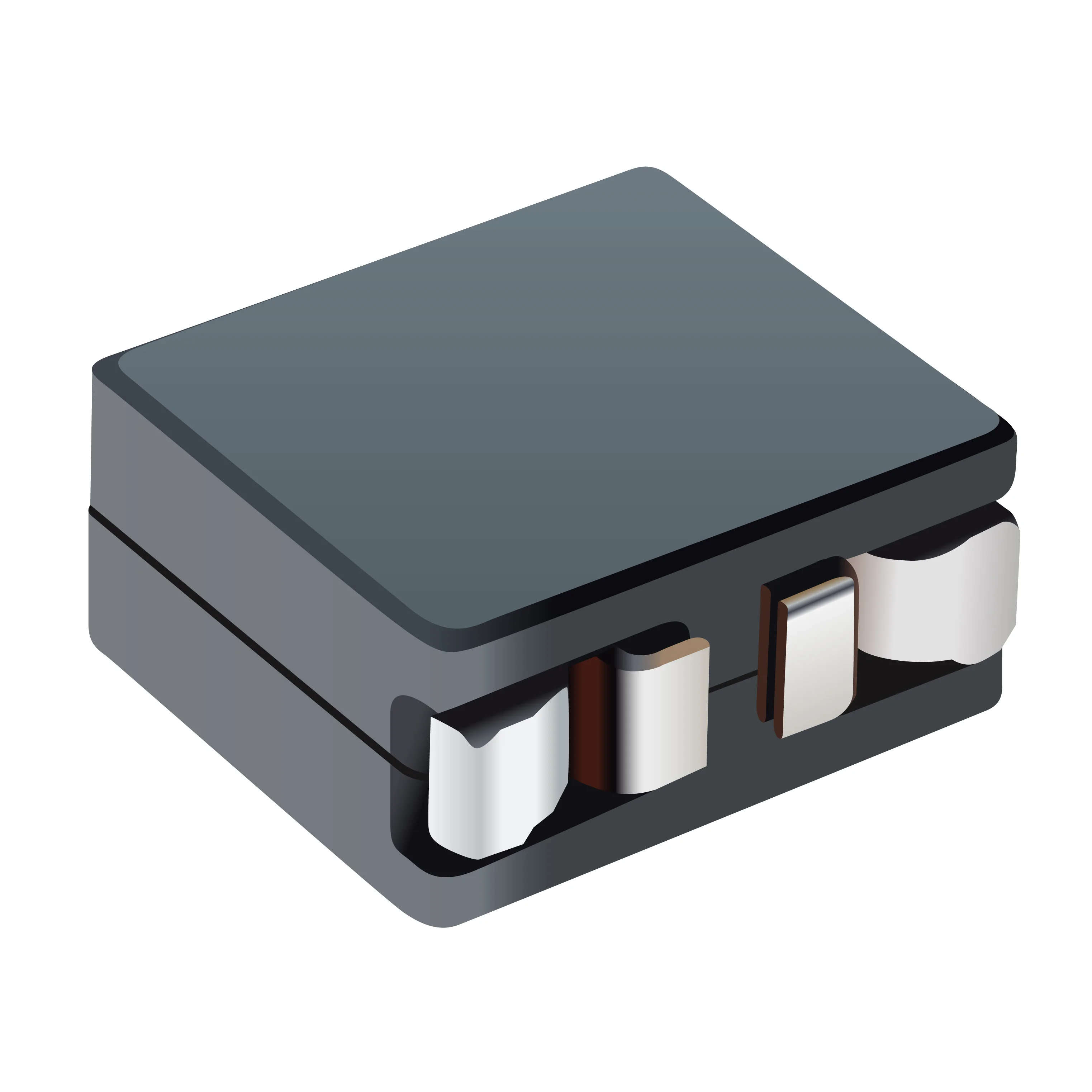

Description
FIXED IND 200NH 77A 0.125 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for TLVR1105T-R20Y.
TLVR1105T-R20Y has an inductance value of 200 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
TLVR1105T-R20Y is rated for 77 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
TLVR1105T-R20Y lists a DC resistance of 0.125mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
TLVR1105T-R20Y uses a package or case of Nonstandard, 4 Lead. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from TLVR1105T-R20Y to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 200 nH |
| Tolerance | ±15% |
| Current Rating | 77 A |
| DC Resistance (DCR) | 0.125mOhm |
| Saturation Current | 58A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.461" L x 0.224" W (11.70mm x 5.70mm) |
| Case / Size | Nonstandard, 4 Lead |
| Package / Case | Nonstandard, 4 Lead |
| Supplier | Bourns Inc. |
| Description | FIXED IND 200NH 77A 0.125 MOHM |
| Series | TLVR1105T |
| Product Status | Active |
| Type / Construction | Molded |
| Core Material | Ferrite |
| Shielding | Shielded |
| Mounting Type | Surface Mount |
| Supplier Device Package | Nonstandard, 4 Lead |
| Height - Seated (Max) | 0.441" (11.20mm) |
