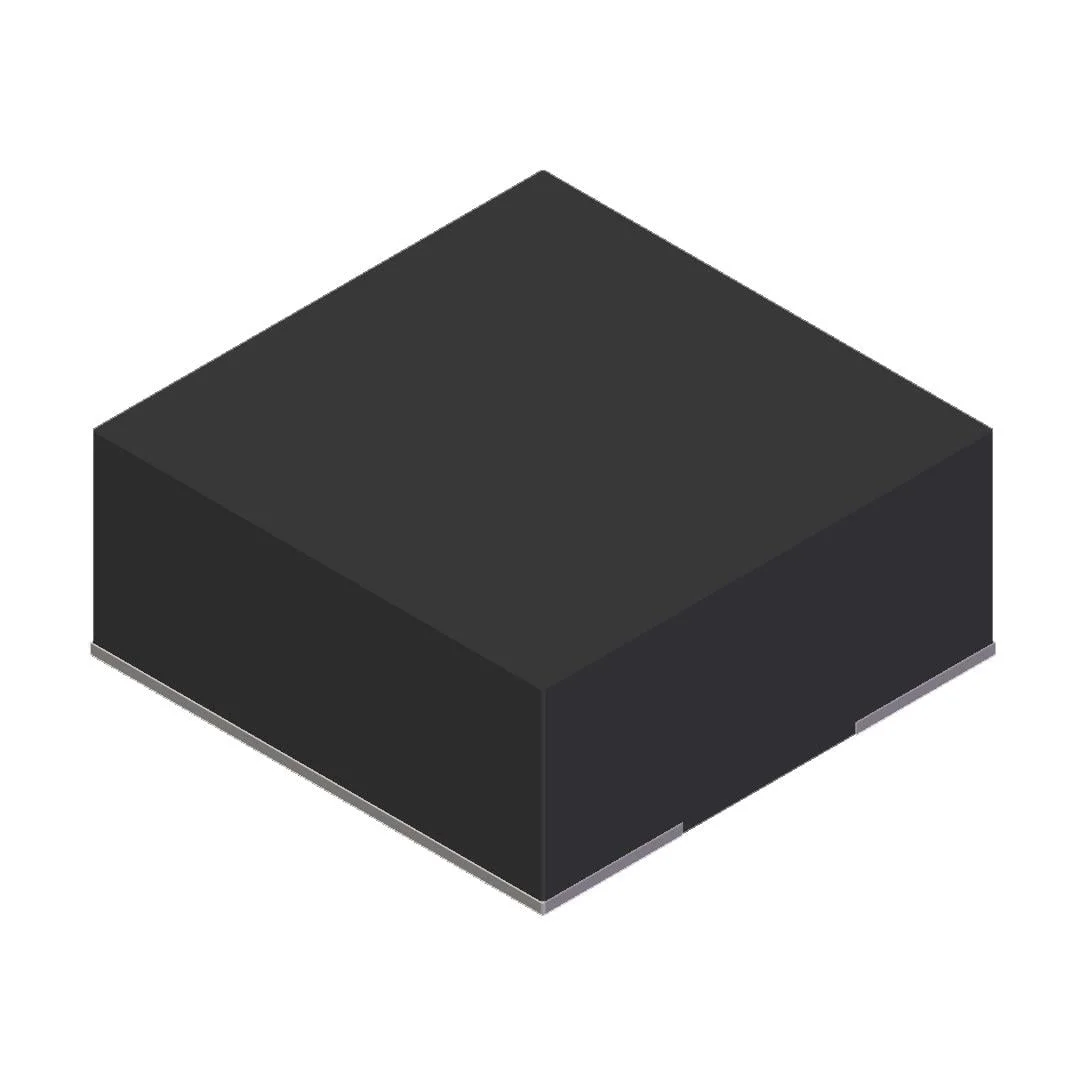

Description
FIXED IND 2.2UH 9.5A 17.4 MOHM
Specifications
Inductance
2.2 µH
Current Rating
9.5 A
DC Resistance (DCR)
17.4mOhm Max
Dimensions
0.165" L x 0.165" W (4.20mm x 4.20mm)
Product Attributes
Manufacturer Verified
Last verified: 6/21/2026| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 9.5 A |
| DC Resistance (DCR) | 17.4mOhm Max |
| saturationCurrent | 7.5A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.165" L x 0.165" W (4.20mm x 4.20mm) |
| Case / Size | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 2.2UH 9.5A 17.4 MOHM |
| Series | TMIM0403S |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
