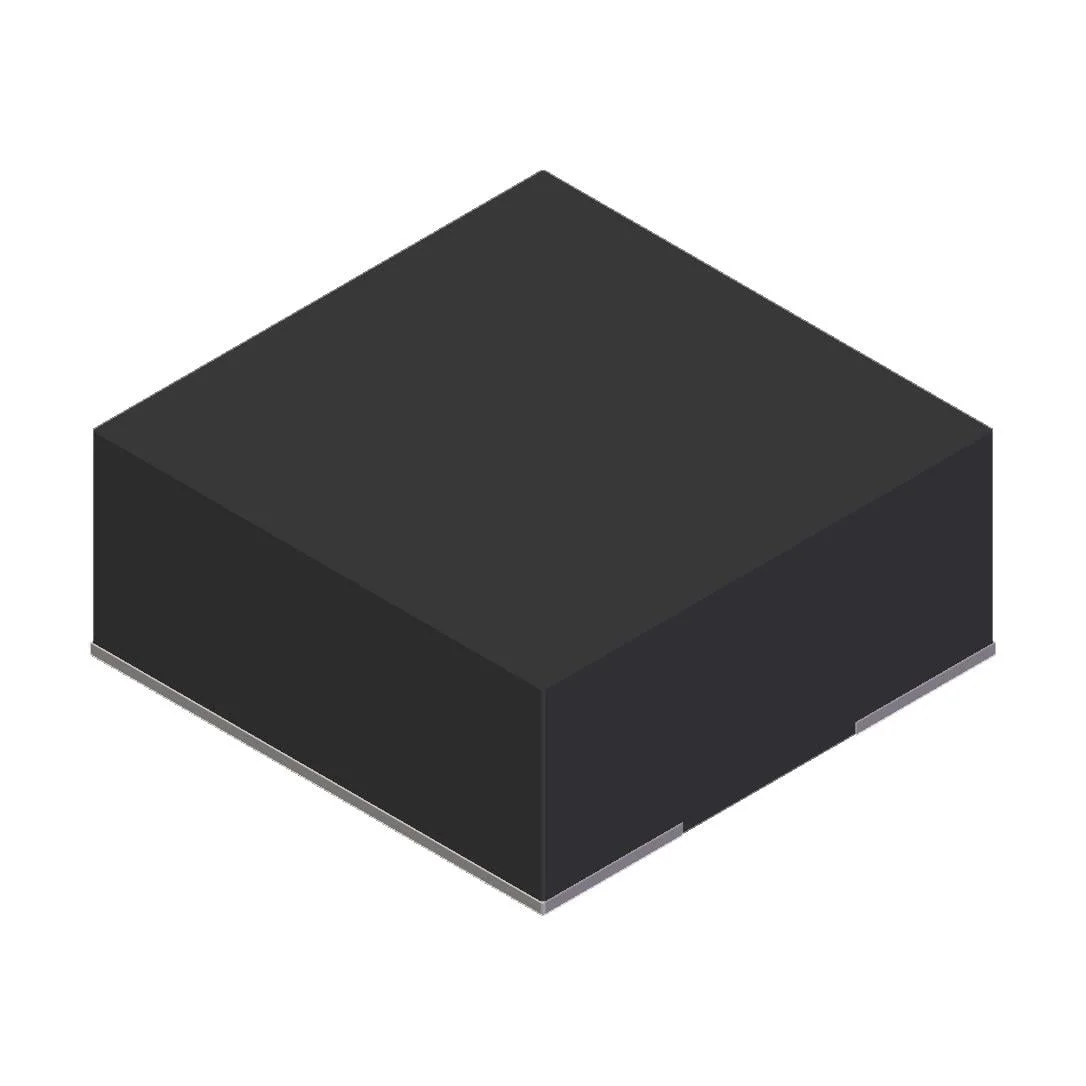

FIXED IND 4.7UH 5.9A 32.4 MOHM
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 5.9 A |
| DC Resistance (DCR) | 32.4mOhm Max |
| saturationCurrent | 5.1A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.165" L x 0.165" W (4.20mm x 4.20mm) |
| Case / Size | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 4.7UH 5.9A 32.4 MOHM |
| Series | TMIM0403S |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.118" (3.00mm) |
| features | - |
