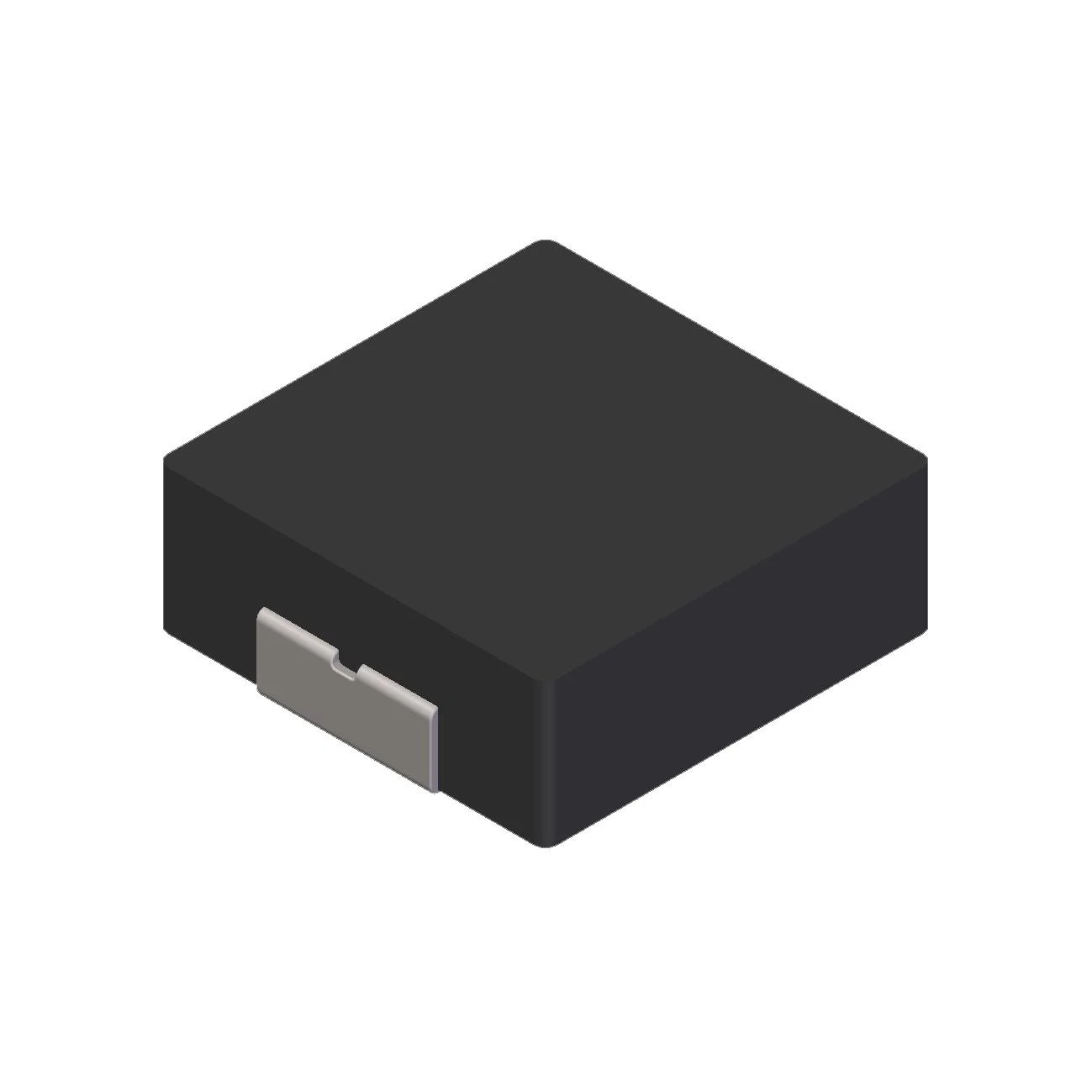

FIXED IND 68UH 3A 240 MOHM SMD
| Inductance | 68 µH |
| Tolerance | ±20% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 240mOhm Max |
| saturationCurrent | 2.8A |
| Operating Temperature | -55°C ~ 180°C |
| Dimensions | 0.433" L x 0.394" W (11.00mm x 10.00mm) |
| Case / Size | Nonstandard |
| Supplier | TAI-TECH |
| Description | FIXED IND 68UH 3A 240 MOHM SMD |
| Series | TMPA1004HTV |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Metal |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | AEC-Q200 |
| testFrequency | 100 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.406" (10.30mm) |
| features | - |
