Description

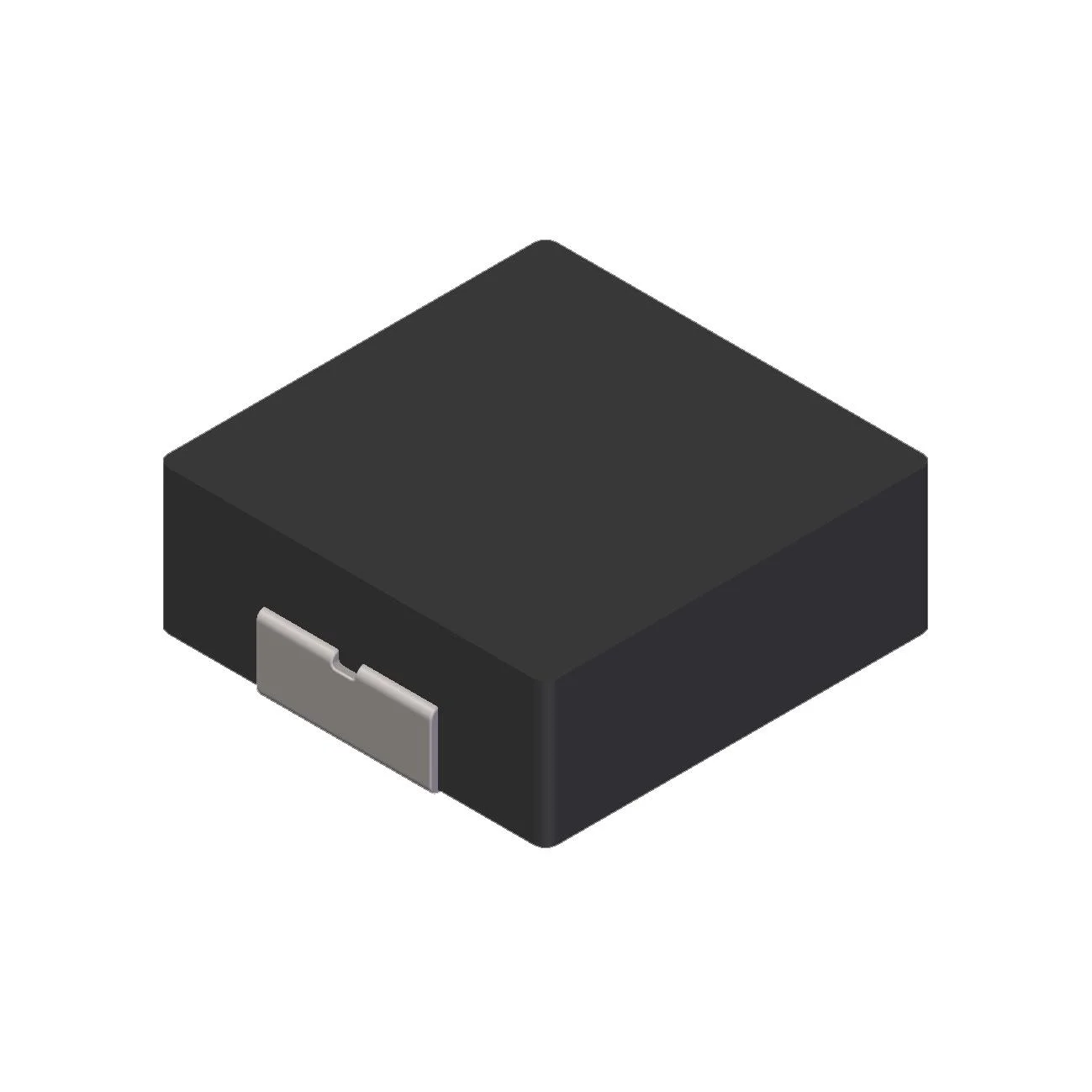

IND 1UH 1.7MOHM 30A
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for TMPA1265HTV-1R0MN-D.
TMPA1265HTV-1R0MN-D has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
TMPA1265HTV-1R0MN-D is rated for 30 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
TMPA1265HTV-1R0MN-D lists a DC resistance of 1.7 mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
Explore Related Datasheet Paths
Continue from TMPA1265HTV-1R0MN-D to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 30 A |
| DC Resistance (DCR) | 1.7 mOhm Max |
| Saturation Current | 33 A Max |
| Supplier | TAI-TECH |
| Description | IND 1UH 1.7MOHM 30A |
| Product Status | Active |
| Inductance Test Frequency | 100 kHz |
