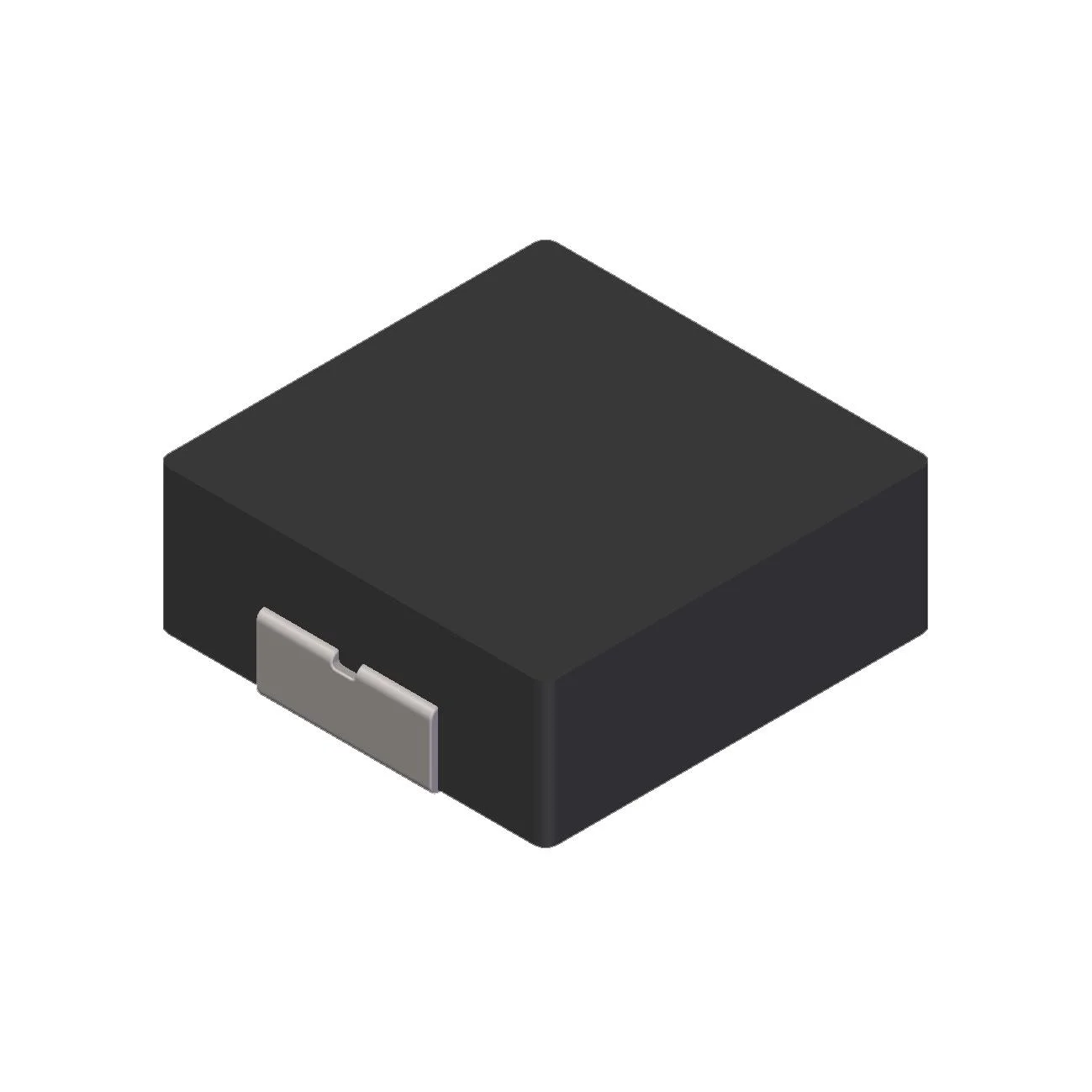

Description
IND 22UH 35MOHM 7.5A
Specifications
Inductance
22 µH
Current Rating
7.5 A
DC Resistance (DCR)
35 mOhm Max
Parameter Guide
Understand the key electrical and mechanical specifications for TMPA1265HTV-220MN-D.
Inductance
22 µH
TMPA1265HTV-220MN-D has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
Current Rating
7.5 A
TMPA1265HTV-220MN-D is rated for 7.5 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
DC Resistance (DCR)
35 mOhm Max
TMPA1265HTV-220MN-D lists a DC resistance of 35 mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
Explore Related Datasheet Paths
Continue from TMPA1265HTV-220MN-D to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 7.5 A |
| DC Resistance (DCR) | 35 mOhm Max |
| Saturation Current | 8 A Max |
| Supplier | TAI-TECH |
| Description | IND 22UH 35MOHM 7.5A |
| Product Status | Active |
| Inductance Test Frequency | 100 kHz |
