Description

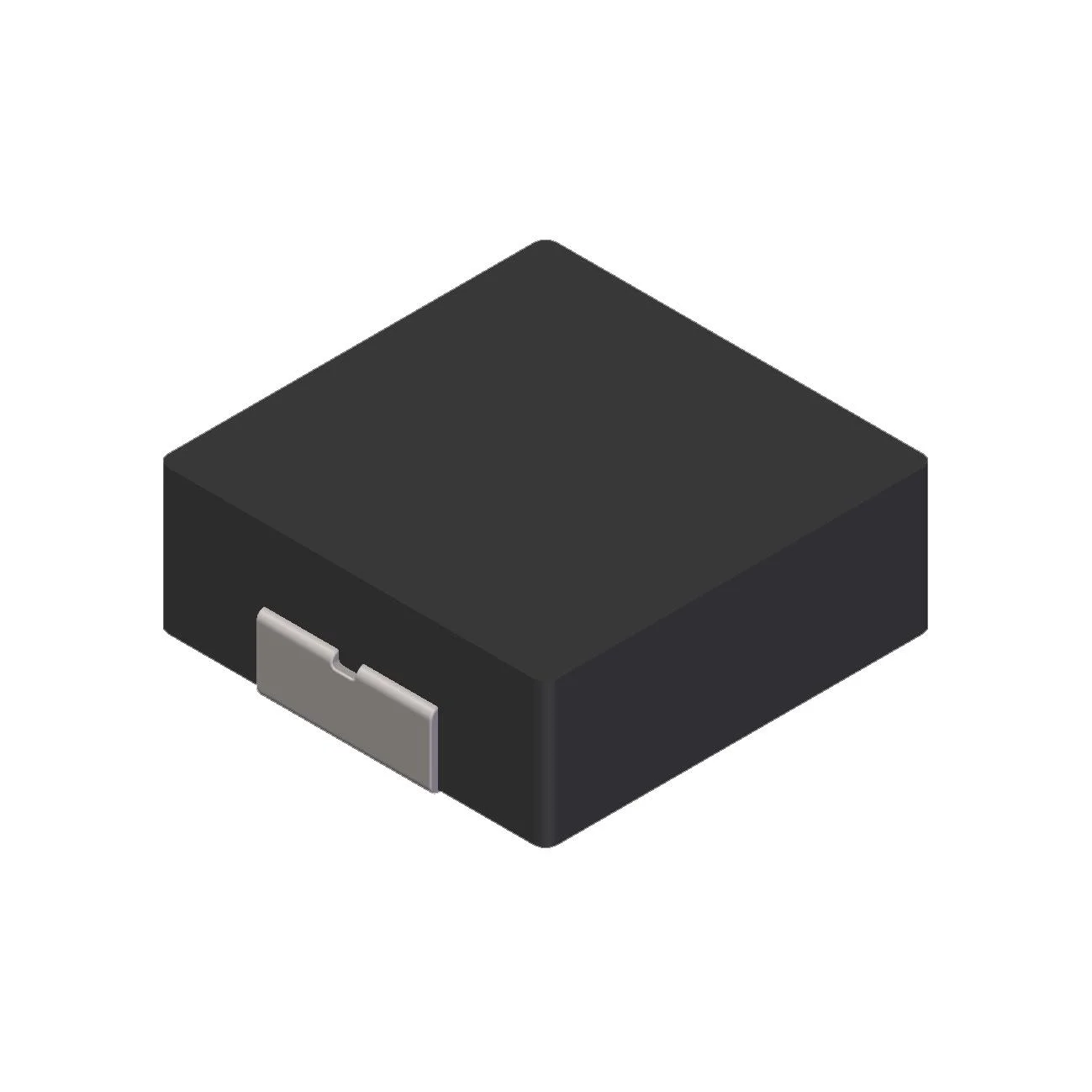

IND 2.2UH 3.7MOHM 22A
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for TMPA1265HTV-2R2MN-D.
TMPA1265HTV-2R2MN-D has an inductance value of 2.2 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
TMPA1265HTV-2R2MN-D is rated for 22 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
TMPA1265HTV-2R2MN-D lists a DC resistance of 3.7 mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
Explore Related Datasheet Paths
Continue from TMPA1265HTV-2R2MN-D to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 2.2 µH |
| Tolerance | ±20% |
| Current Rating | 22 A |
| DC Resistance (DCR) | 3.7 mOhm Max |
| Saturation Current | 23 A Max |
| Supplier | TAI-TECH |
| Description | IND 2.2UH 3.7MOHM 22A |
| Product Status | Active |
| Inductance Test Frequency | 100 kHz |
