Description

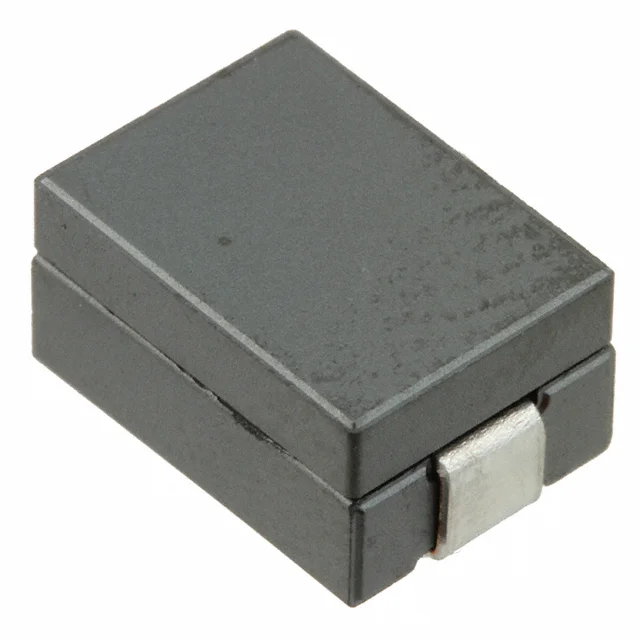

FIXED IND 200NH 31A 0.35 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for VLB10050HT-R20M.
VLB10050HT-R20M has an inductance value of 200 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
VLB10050HT-R20M is rated for 31 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
VLB10050HT-R20M lists a DC resistance of 0.35mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
VLB10050HT-R20M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from VLB10050HT-R20M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 200 nH |
| Tolerance | ±20% |
| Current Rating | 31 A |
| DC Resistance (DCR) | 0.35mOhm Max |
| Saturation Current | 37A |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.386" L x 0.264" W (9.80mm x 6.70mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TDK |
| Description | FIXED IND 200NH 31A 0.35 MOHM |
| Series | VLB |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.197" (5.00mm) |
