Description

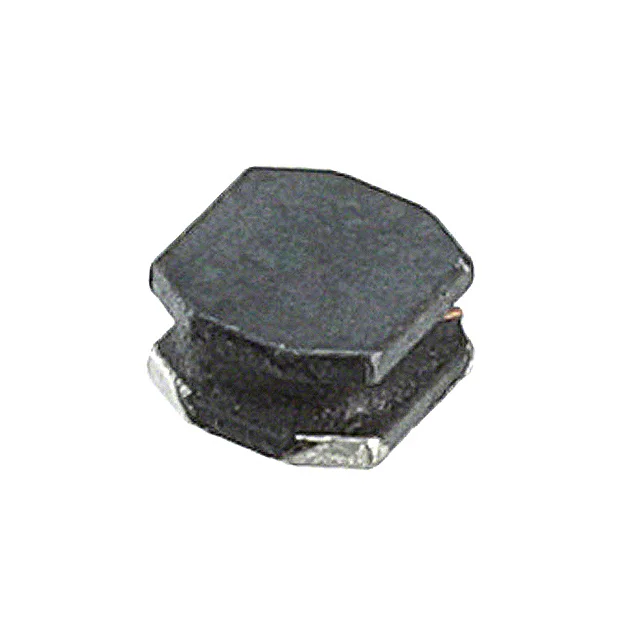

FIXED IND 15UH 400MA 1.476 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for VLS2010ET-150M.
VLS2010ET-150M has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
VLS2010ET-150M is rated for 400 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
VLS2010ET-150M lists a DC resistance of 1.476Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
VLS2010ET-150M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from VLS2010ET-150M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 400 mA |
| DC Resistance (DCR) | 1.476Ohm Max |
| Saturation Current | 400mA |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.079" W (2.00mm x 2.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TDK |
| Description | FIXED IND 15UH 400MA 1.476 OHM |
| Series | VLS |
| Product Status | Not For New Designs |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
