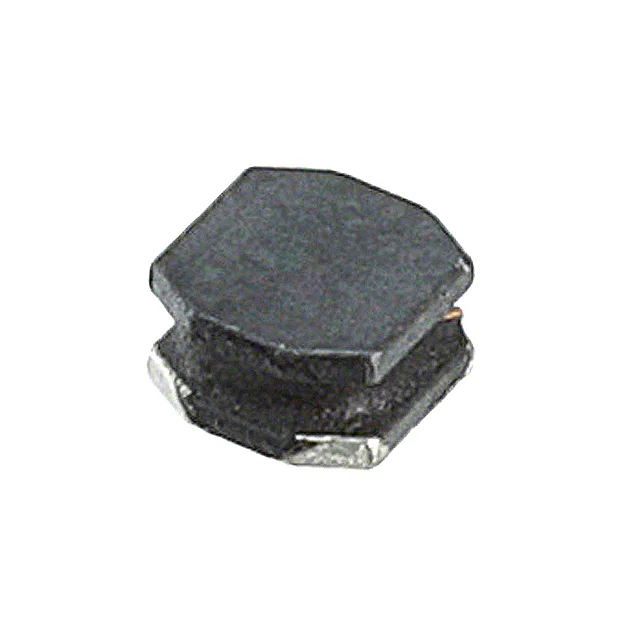

FIXED IND 3.3UH 840MA 228 MOHM
| Inductance | 3.3 µH |
| Tolerance | ±20% |
| Current Rating | 840 mA |
| DC Resistance (DCR) | 228mOhm Max |
| saturationCurrent | 840mA |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.079" W (2.00mm x 2.00mm) |
| Case / Size | Nonstandard |
| Supplier | TDK |
| Description | FIXED IND 3.3UH 840MA 228 MOHM |
| Series | VLS |
| productStatus | Not For New Designs |
| typeConstruction | Wirewound |
| coreMaterial | - |
| shielding | Shielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.047" (1.20mm) |
| features | - |
