Description

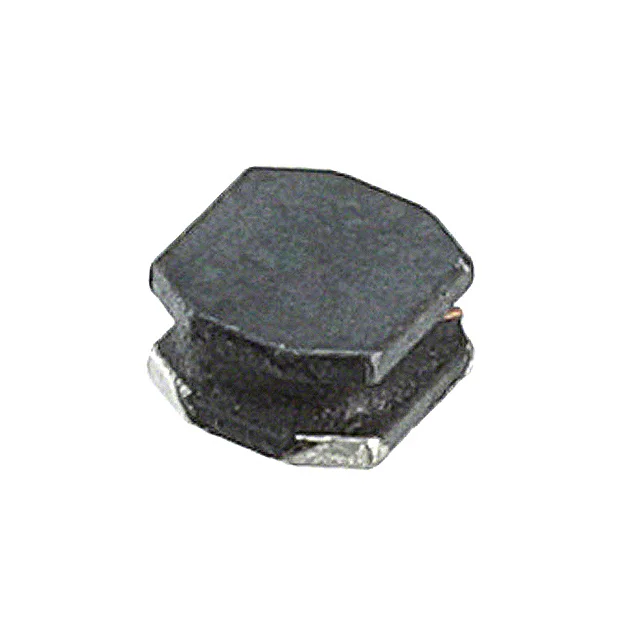

FIXED IND 4.7UH 700MA 336 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for VLS2012ET-4R7M.
VLS2012ET-4R7M has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
VLS2012ET-4R7M is rated for 700 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
VLS2012ET-4R7M lists a DC resistance of 336mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
VLS2012ET-4R7M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from VLS2012ET-4R7M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 700 mA |
| DC Resistance (DCR) | 336mOhm Max |
| Saturation Current | 700mA |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.079" L x 0.079" W (2.00mm x 2.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TDK |
| Description | FIXED IND 4.7UH 700MA 336 MOHM |
| Series | VLS |
| Product Status | Not For New Designs |
| Type / Construction | Wirewound |
| Shielding | Shielded |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.047" (1.20mm) |
