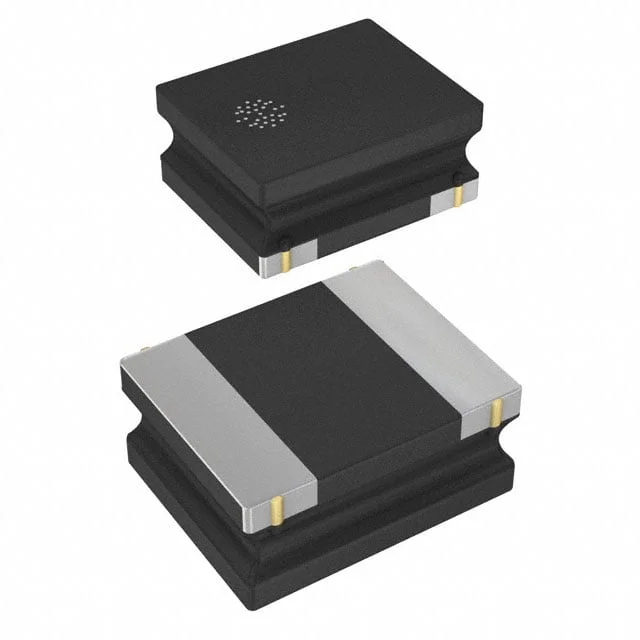

Description
FIXED IND 15UH 580MA 1.344 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for VLS252010HBU-150M.
VLS252010HBU-150M has an inductance value of 15 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
VLS252010HBU-150M is rated for 580 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
VLS252010HBU-150M lists a DC resistance of 1.344Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
VLS252010HBU-150M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from VLS252010HBU-150M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 15 µH |
| Tolerance | ±20% |
| Current Rating | 580 mA |
| DC Resistance (DCR) | 1.344Ohm Max |
| Saturation Current | 900mA |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TDK |
| Description | FIXED IND 15UH 580MA 1.344 OHM |
| Series | VLS-HBU |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Metal |
| Shielding | Shielded |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
