Description

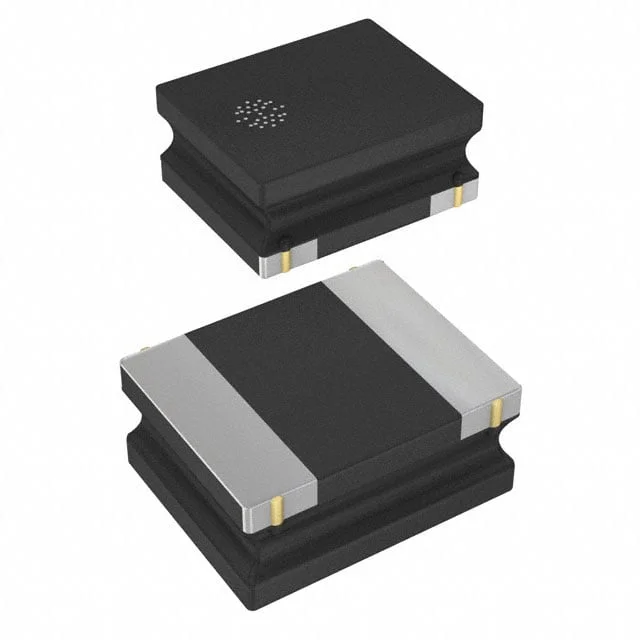

FIXED IND 22UH 470MA 2.004 OHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for VLS252010HBU-220M.
VLS252010HBU-220M has an inductance value of 22 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
VLS252010HBU-220M is rated for 470 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
VLS252010HBU-220M lists a DC resistance of 2.004Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
VLS252010HBU-220M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from VLS252010HBU-220M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 470 mA |
| DC Resistance (DCR) | 2.004Ohm Max |
| Saturation Current | 750mA |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TDK |
| Description | FIXED IND 22UH 470MA 2.004 OHM |
| Series | VLS-HBU |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Metal |
| Shielding | Shielded |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
