Description

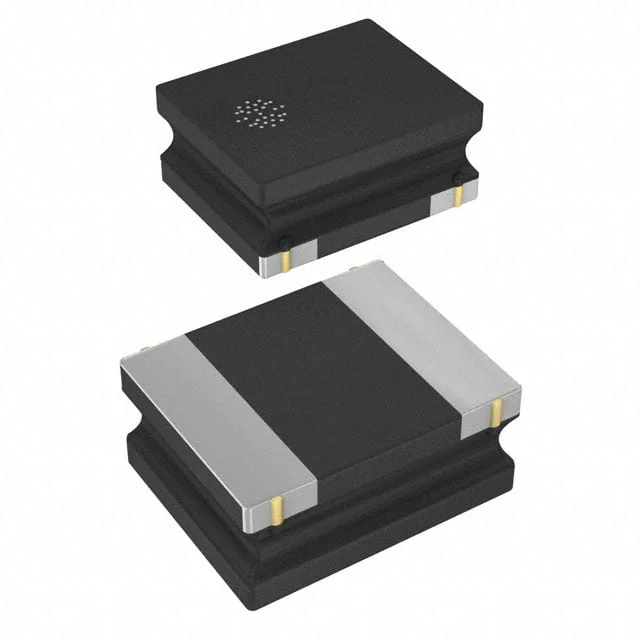

FIXED IND 4.7UH 1.01A 329 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for VLS252010HBU-4R7M.
VLS252010HBU-4R7M has an inductance value of 4.7 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
VLS252010HBU-4R7M is rated for 1.01 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
VLS252010HBU-4R7M lists a DC resistance of 329mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
VLS252010HBU-4R7M uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from VLS252010HBU-4R7M to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 1.01 A |
| DC Resistance (DCR) | 329mOhm Max |
| Saturation Current | 1.55A |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | TDK |
| Description | FIXED IND 4.7UH 1.01A 329 MOHM |
| Series | VLS-HBU |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Metal |
| Shielding | Shielded |
| Inductance Test Frequency | 1 MHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.039" (1.00mm) |
