Description

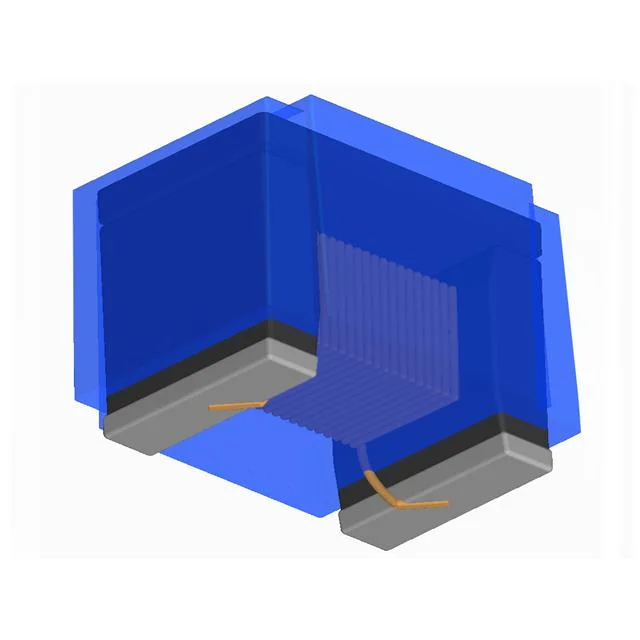

FIXED IND 1UH 455MA 70 MOHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for WNLU252018RV-1R0M.
WNLU252018RV-1R0M has an inductance value of 1 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
WNLU252018RV-1R0M is rated for 455 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
WNLU252018RV-1R0M lists a DC resistance of 70mOhm. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
WNLU252018RV-1R0M uses a package or case of 1008 (2520 Metric). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from WNLU252018RV-1R0M to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 1 µH |
| Tolerance | ±20% |
| Current Rating | 455 mA |
| DC Resistance (DCR) | 70mOhm |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.102" L x 0.079" W (2.60mm x 2.00mm) |
| Case / Size | 1008 (2520 Metric) |
| Package / Case | 1008 (2520 Metric) |
| Supplier | TAI-TECH |
| Description | FIXED IND 1UH 455MA 70 MOHM SMD |
| Series | WNLU252018RV |
| Product Status | Active |
| Type / Construction | Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Ratings | AEC-Q200 |
| Inductance Test Frequency | 7.96 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | 1008 |
| Height - Seated (Max) | 0.079" (2.00mm) |
