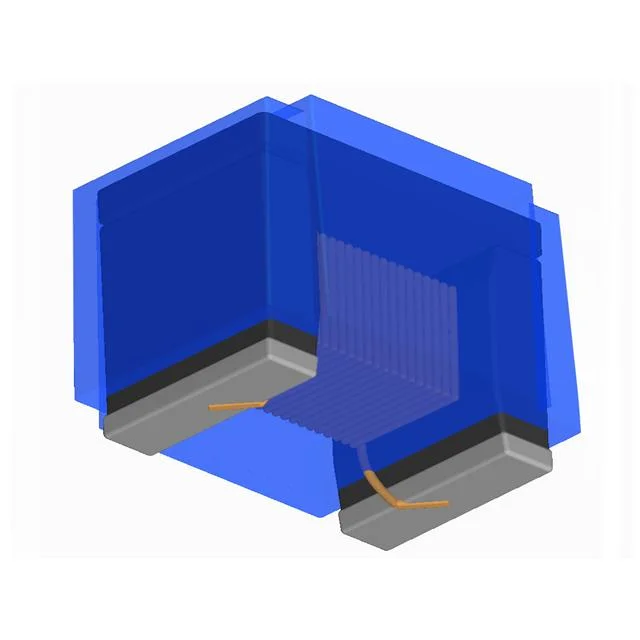

Description
FIXED IND 22UH 140MA 400 MOHM
Specifications
Inductance
22 µH
Current Rating
140 mA
DC Resistance (DCR)
400mOhm Max
Dimensions
0.126" L x 0.098" W (3.20mm x 2.50mm)
Product Attributes
Manufacturer Verified
Last verified: 6/21/2026| Inductance | 22 µH |
| Tolerance | ±20% |
| Current Rating | 140 mA |
| DC Resistance (DCR) | 400mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Supplier | TAI-TECH |
| Description | FIXED IND 22UH 140MA 400 MOHM |
| Series | WNLU322522RV |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 2.52 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1210 |
| heightMax | 0.094" (2.40mm) |
| features | - |
