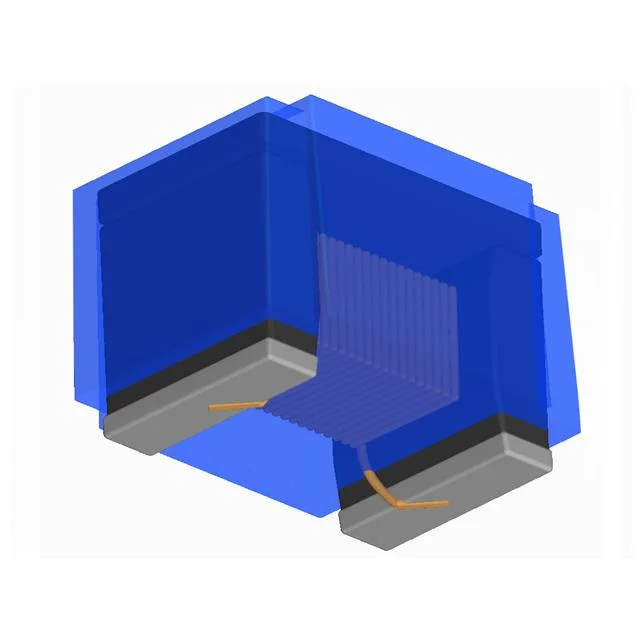

FIXED IND 4.7UH 360MA 130 MOHM
| Inductance | 4.7 µH |
| Tolerance | ±20% |
| Current Rating | 360 mA |
| DC Resistance (DCR) | 130mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| Case / Size | 1210 (3225 Metric) |
| Supplier | TAI-TECH |
| Description | FIXED IND 4.7UH 360MA 130 MOHM |
| Series | WNLU322522RV |
| productStatus | Active |
| typeConstruction | Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 7.96 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | 1210 |
| heightMax | 0.094" (2.40mm) |
| features | - |
