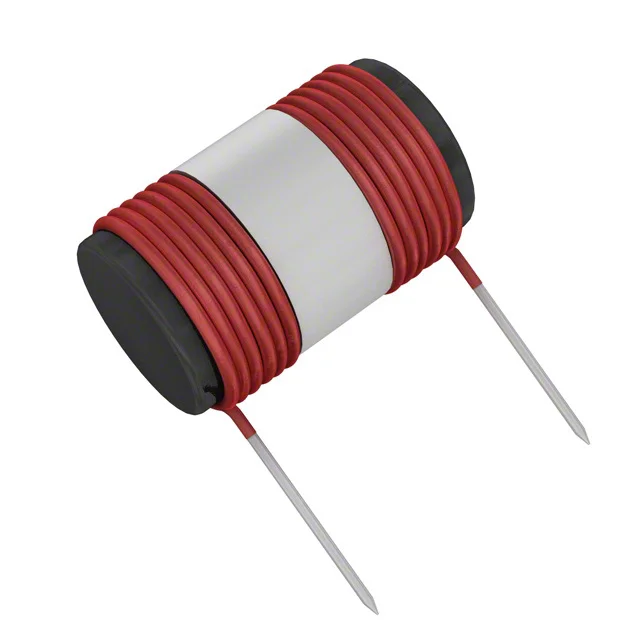

FIXED IND 100UH 10A 30 MOHM TH
| Inductance | 100 µH |
| Tolerance | ±10% |
| Current Rating | 10 A |
| DC Resistance (DCR) | 30mOhm Max |
| saturationCurrent | 6A |
| Operating Temperature | - |
| Dimensions | 1.625" Dia x 0.937" L (41.28mm x 23.80mm) |
| Case / Size | Radial, Horizontal Cylinder (Open) |
| Supplier | Delevan |
| Description | FIXED IND 100UH 10A 30 MOHM TH |
| Series | HC |
| productStatus | Active |
| typeConstruction | Drum Core, Wirewound |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | - |
| selfResonantFreq | - |
| ratings | - |
| testFrequency | 1 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
