1812R-104J
Delevan
- Inductance
- 100 µH
- Current
- 158 mA
- DCR
- 8Ohm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
Inductor Datasheets
Browse and download PDF datasheets for inductors from leading manufacturers.
24873 datasheets found from Delevan
SPD62R-473M
Delevan
- Inductance
- 47 µH
- Current
- 700 mA
- DCR
- 750mOhm Max
- Size
- 0.260" L x 0.244" W (6.60mm x 6.20mm)
1025R-68K
Delevan
- Inductance
- 100 µH
- Current
- 84 mA
- DCR
- 8Ohm Max
- Size
- 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
S1812R-473K
Delevan
- Inductance
- 47 µH
- Current
- 242 mA
- DCR
- 3.4Ohm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
1025R-94K
Delevan
- Inductance
- 100 nH
- Current
- 1.38 A
- DCR
- 80mOhm Max
- Size
- 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
1025R-36K
Delevan
- Inductance
- 4.7 µH
- Current
- 239 mA
- DCR
- 1.2Ohm Max
- Size
- 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
1025R-08K
Delevan
- Inductance
- 330 nH
- Current
- 830 mA
- DCR
- 220mOhm Max
- Size
- 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
1025R-28K
Delevan
- Inductance
- 2.2 µH
- Current
- 415 mA
- DCR
- 400mOhm Max
- Size
- 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
1025R-16K
Delevan
- Inductance
- 680 nH
- Current
- 500 mA
- DCR
- 600mOhm Max
- Size
- 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
1025R-20K
Delevan
- Inductance
- 1 µH
- Current
- 390 mA
- DCR
- 1Ohm Max
- Size
- 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
1025R-04K
Delevan
- Inductance
- 220 nH
- Current
- 1.04 A
- DCR
- 140mOhm Max
- Size
- 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
1210R-470K
Delevan
- Inductance
- 47 nH
- Current
- 636 mA
- DCR
- 300mOhm Max
- Size
- 0.128" L x 0.095" W (3.25mm x 2.42mm)
1025-20K
Delevan
- Inductance
- 1 µH
- Current
- 390 mA
- DCR
- 1Ohm Max
- Size
- 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
1025-36K
Delevan
- Inductance
- 4.7 µH
- Current
- 239 mA
- DCR
- 1.2Ohm Max
- Size
- 0.095" Dia x 0.250" L (2.41mm x 6.35mm)
1812R-562J
Delevan
- Inductance
- 5.6 µH
- Current
- 427 mA
- DCR
- 1.1Ohm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
1812R-274J
Delevan
- Inductance
- 270 µH
- Current
- 129 mA
- DCR
- 12Ohm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
1812R-472J
Delevan
- Inductance
- 4.7 µH
- Current
- 448 mA
- DCR
- 1Ohm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
1812R-153J
Delevan
- Inductance
- 15 µH
- Current
- 283 mA
- DCR
- 2.5Ohm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
1812R-102J
Delevan
- Inductance
- 1 µH
- Current
- 634 mA
- DCR
- 500mOhm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)
1812R-105J
Delevan
- Inductance
- 1 mH
- Current
- 55 mA
- DCR
- 60Ohm Max
- Size
- 0.177" L x 0.126" W (4.50mm x 3.20mm)

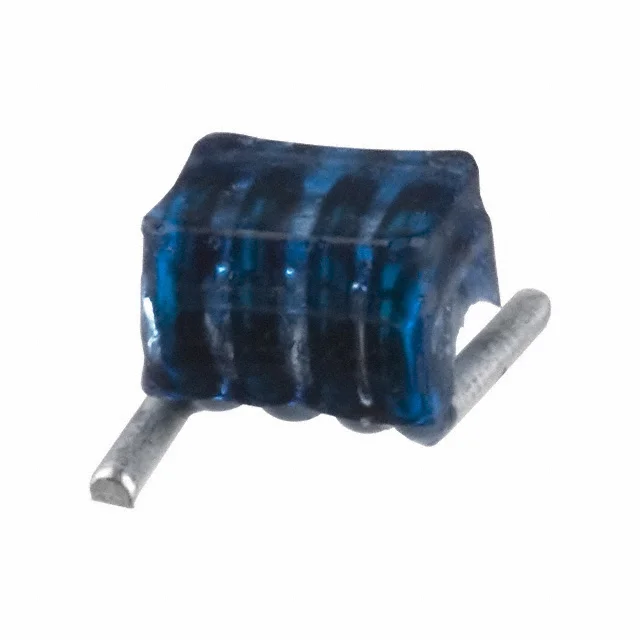

4426R-3
Delevan
- Inductance
- 8 nH
- Current
- 3 A
- DCR
- -
- Size
- 0.145" L x 0.120" W (3.68mm x 3.05mm)
1210R-333J
Delevan
- Inductance
- 33 µH
- Current
- 182 mA
- DCR
- 5.6Ohm Max
- Size
- 0.128" L x 0.095" W (3.25mm x 2.42mm)
1537R-28K
Delevan
- Inductance
- 4.7 µH
- Current
- 294 mA
- DCR
- 2.6Ohm Max
- Size
- 0.156" Dia x 0.375" L (3.96mm x 9.53mm)
1210R-682J
Delevan
- Inductance
- 6.8 µH
- Current
- 321 mA
- DCR
- 1.8Ohm Max
- Size
- 0.128" L x 0.095" W (3.25mm x 2.42mm)
P1330R-182K
Delevan
- Inductance
- 1.8 µH
- Current
- 1.95 A
- DCR
- 48mOhm Max
- Size
- 0.313" L x 0.115" W (7.94mm x 2.92mm)
| Product | Inductance | Current | DCR | Size | Package | Actions |
|---|---|---|---|---|---|---|
1812R-104J Delevan | 100 µH | 158 mA | 8Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
SPD62R-473M Delevan | 47 µH | 700 mA | 750mOhm Max | 0.260" L x 0.244" W (6.60mm x 6.20mm) | Nonstandard | |
1025R-68K Delevan | 100 µH | 84 mA | 8Ohm Max | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | Axial | |
S1812R-473K Delevan | 47 µH | 242 mA | 3.4Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
1025R-94K Delevan | 100 nH | 1.38 A | 80mOhm Max | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | Axial | |
1025R-36K Delevan | 4.7 µH | 239 mA | 1.2Ohm Max | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | Axial | |
1025R-08K Delevan | 330 nH | 830 mA | 220mOhm Max | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | Axial | |
1025R-28K Delevan | 2.2 µH | 415 mA | 400mOhm Max | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | Axial | |
1025R-16K Delevan | 680 nH | 500 mA | 600mOhm Max | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | Axial | |
1025R-20K Delevan | 1 µH | 390 mA | 1Ohm Max | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | Axial | |
1025R-04K Delevan | 220 nH | 1.04 A | 140mOhm Max | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | Axial | |
1210R-470K Delevan | 47 nH | 636 mA | 300mOhm Max | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 1210 (3225 Metric) | |
1025-20K Delevan | 1 µH | 390 mA | 1Ohm Max | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | Axial | |
1025-36K Delevan | 4.7 µH | 239 mA | 1.2Ohm Max | 0.095" Dia x 0.250" L (2.41mm x 6.35mm) | Axial | |
1812R-562J Delevan | 5.6 µH | 427 mA | 1.1Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
1812R-274J Delevan | 270 µH | 129 mA | 12Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
1812R-472J Delevan | 4.7 µH | 448 mA | 1Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
1812R-153J Delevan | 15 µH | 283 mA | 2.5Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
1812R-102J Delevan | 1 µH | 634 mA | 500mOhm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
1812R-105J Delevan | 1 mH | 55 mA | 60Ohm Max | 0.177" L x 0.126" W (4.50mm x 3.20mm) | 1812 (4532 Metric) | |
4426R-3 Delevan | 8 nH | 3 A | - | 0.145" L x 0.120" W (3.68mm x 3.05mm) | Nonstandard | |
1210R-333J Delevan | 33 µH | 182 mA | 5.6Ohm Max | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 1210 (3225 Metric) | |
1537R-28K Delevan | 4.7 µH | 294 mA | 2.6Ohm Max | 0.156" Dia x 0.375" L (3.96mm x 9.53mm) | Axial | |
1210R-682J Delevan | 6.8 µH | 321 mA | 1.8Ohm Max | 0.128" L x 0.095" W (3.25mm x 2.42mm) | 1210 (3225 Metric) | |
P1330R-182K Delevan | 1.8 µH | 1.95 A | 48mOhm Max | 0.313" L x 0.115" W (7.94mm x 2.92mm) | Nonstandard |
