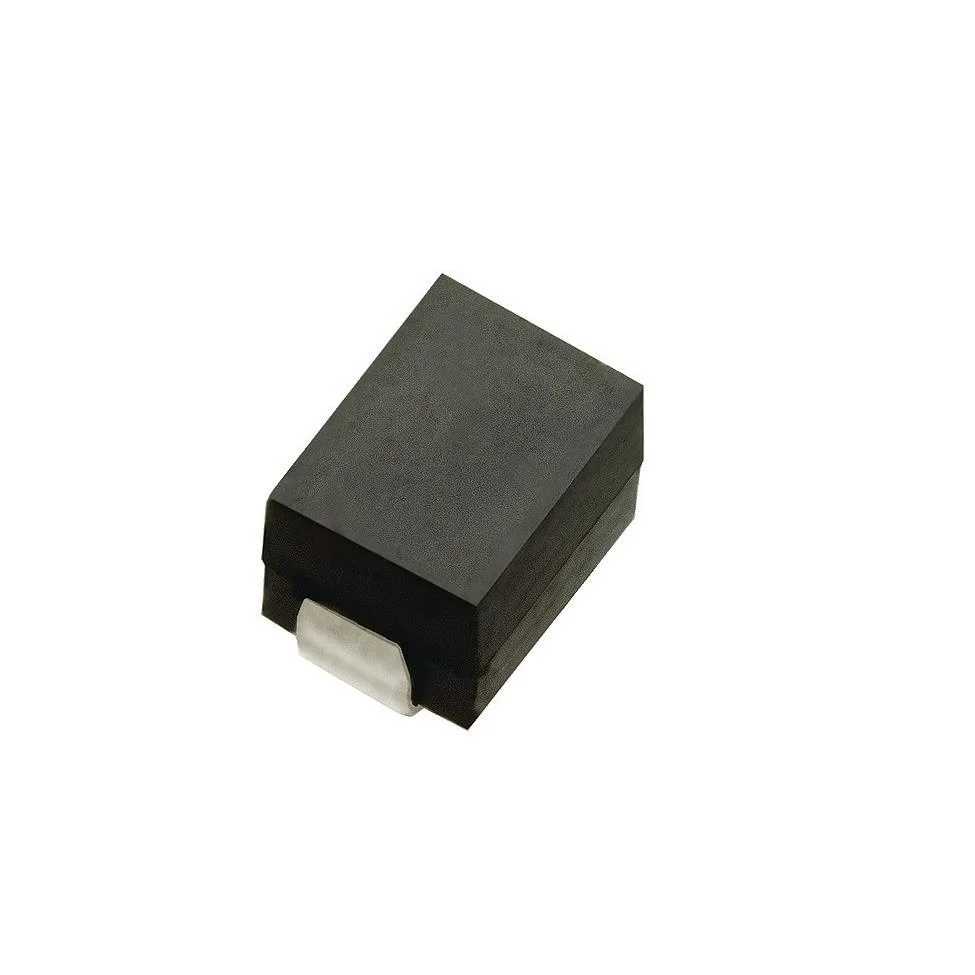

FIXED IND 2.7UH 355MA 550 MOHM
| Inductance | 2.7 µH |
| Tolerance | ±10% |
| Current Rating | 355 mA |
| DC Resistance (DCR) | 550mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.313" L x 0.115" W (7.95mm x 2.92mm) |
| Case / Size | 2-SMD |
| Supplier | Delevan |
| Description | FIXED IND 2.7UH 355MA 550 MOHM |
| Series | 1330R |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Iron |
| shielding | Unshielded |
| qFactor | 37 @ 7.9MHz |
| selfResonantFreq | 100MHz |
| ratings | - |
| testFrequency | 7.9 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.145" (3.68mm) |
