Description

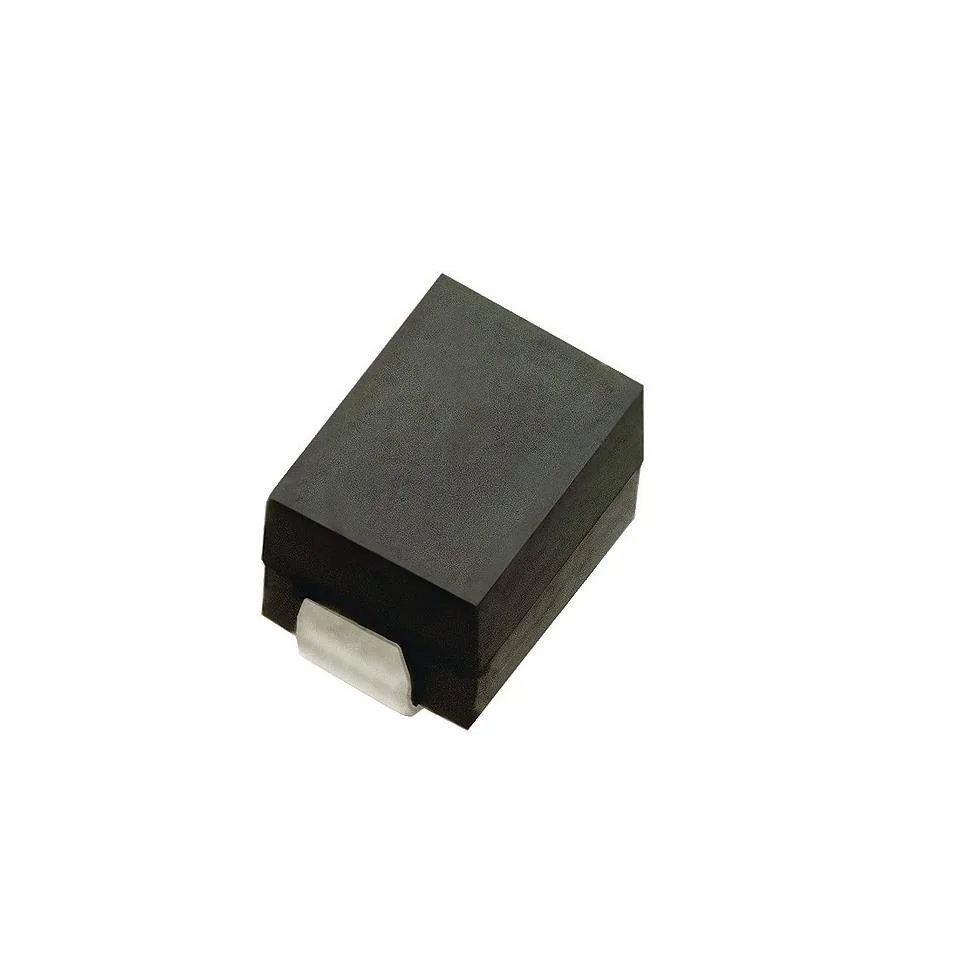

FIXED IND 270UH 47MA 25 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 1330R-78J.
1330R-78J has an inductance value of 270 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
1330R-78J is rated for 47 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
1330R-78J lists a DC resistance of 25Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
1330R-78J uses a package or case of 2-SMD. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 1330R-78J to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 270 µH |
| Tolerance | ±5% |
| Current Rating | 47 mA |
| DC Resistance (DCR) | 25Ohm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.313" L x 0.115" W (7.95mm x 2.92mm) |
| Case / Size | 2-SMD |
| Package / Case | 2-SMD |
| Supplier | Delevan |
| Description | FIXED IND 270UH 47MA 25 OHM SMD |
| Series | 1330R |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 30 @ 790kHz |
| Self Resonant Frequency | 8MHz |
| Inductance Test Frequency | 790 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.145" (3.68mm) |
