Description

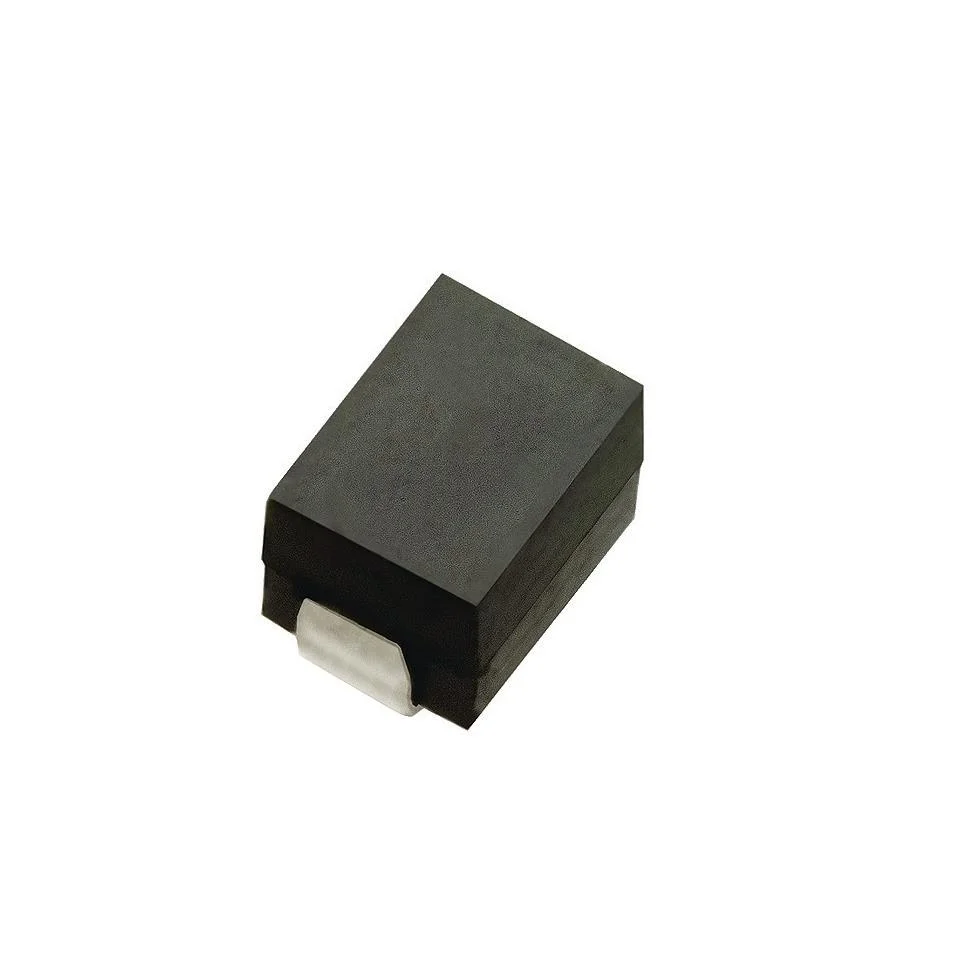

FIXED IND 390UH 40MA 35 OHM SMD
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 1330R-82K.
1330R-82K has an inductance value of 390 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
1330R-82K is rated for 40 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
1330R-82K lists a DC resistance of 35Ohm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
1330R-82K uses a package or case of 2-SMD. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 1330R-82K to manufacturer, series, and broader datasheet collections.
Alternative Solutions
Compare possible alternatives with similar specifications. Verify every electrical and mechanical requirement before use.
Product Attributes
| Inductance | 390 µH |
| Tolerance | ±10% |
| Current Rating | 40 mA |
| DC Resistance (DCR) | 35Ohm Max |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.313" L x 0.115" W (7.95mm x 2.92mm) |
| Case / Size | 2-SMD |
| Package / Case | 2-SMD |
| Supplier | Delevan |
| Description | FIXED IND 390UH 40MA 35 OHM SMD |
| Series | 1330R |
| Product Status | Active |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Q @ Frequency | 30 @ 790kHz |
| Self Resonant Frequency | 6.5MHz |
| Inductance Test Frequency | 790 kHz |
| Mounting Type | Surface Mount |
| Height - Seated (Max) | 0.145" (3.68mm) |
