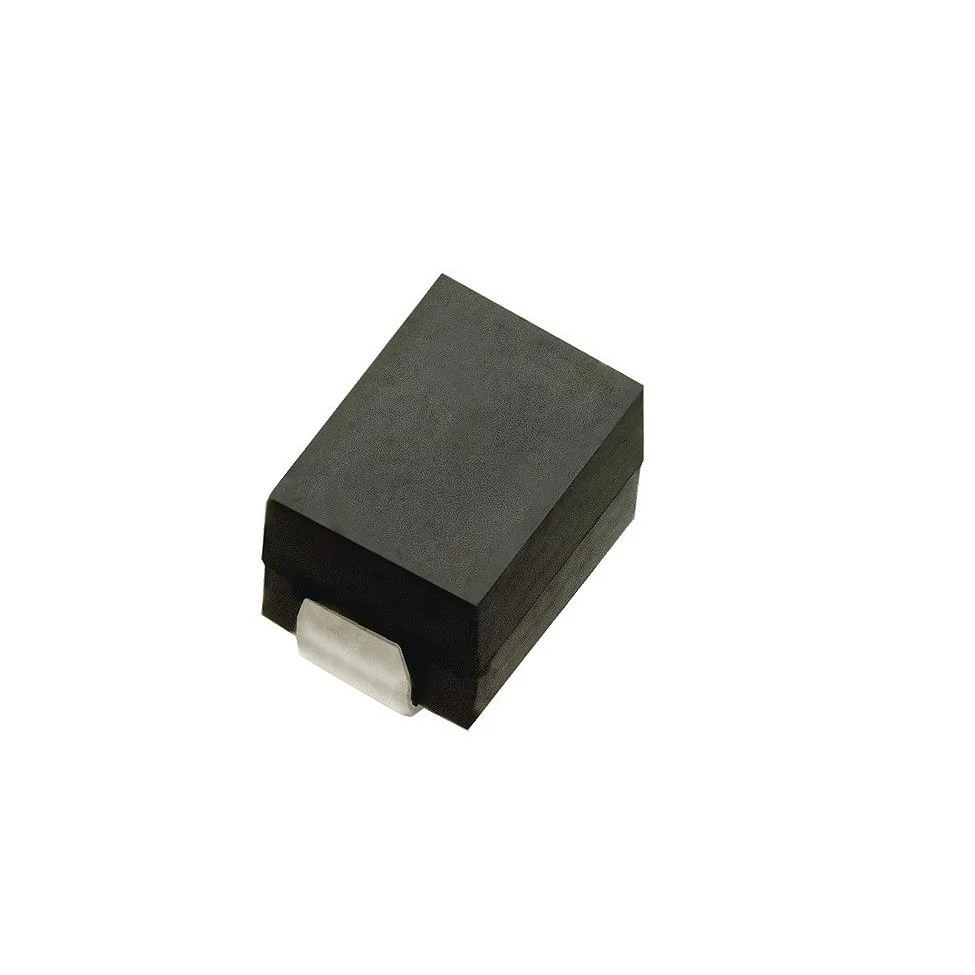

FIXED IND 1MH 28MA 72 OHM SMD
| Inductance | 1 mH |
| Tolerance | ±10% |
| Current Rating | 28 mA |
| DC Resistance (DCR) | 72Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.313" L x 0.115" W (7.95mm x 2.92mm) |
| Case / Size | 2-SMD |
| Supplier | Delevan |
| Description | FIXED IND 1MH 28MA 72 OHM SMD |
| Series | 1330R |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Ferrite |
| shielding | Unshielded |
| qFactor | 30 @ 790kHz |
| selfResonantFreq | 3.4MHz |
| ratings | - |
| testFrequency | 790 kHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.145" (3.68mm) |
| features | https://www.digikey.com/en/products/detail/delevan/1330R-92K/4177805 |
