Description

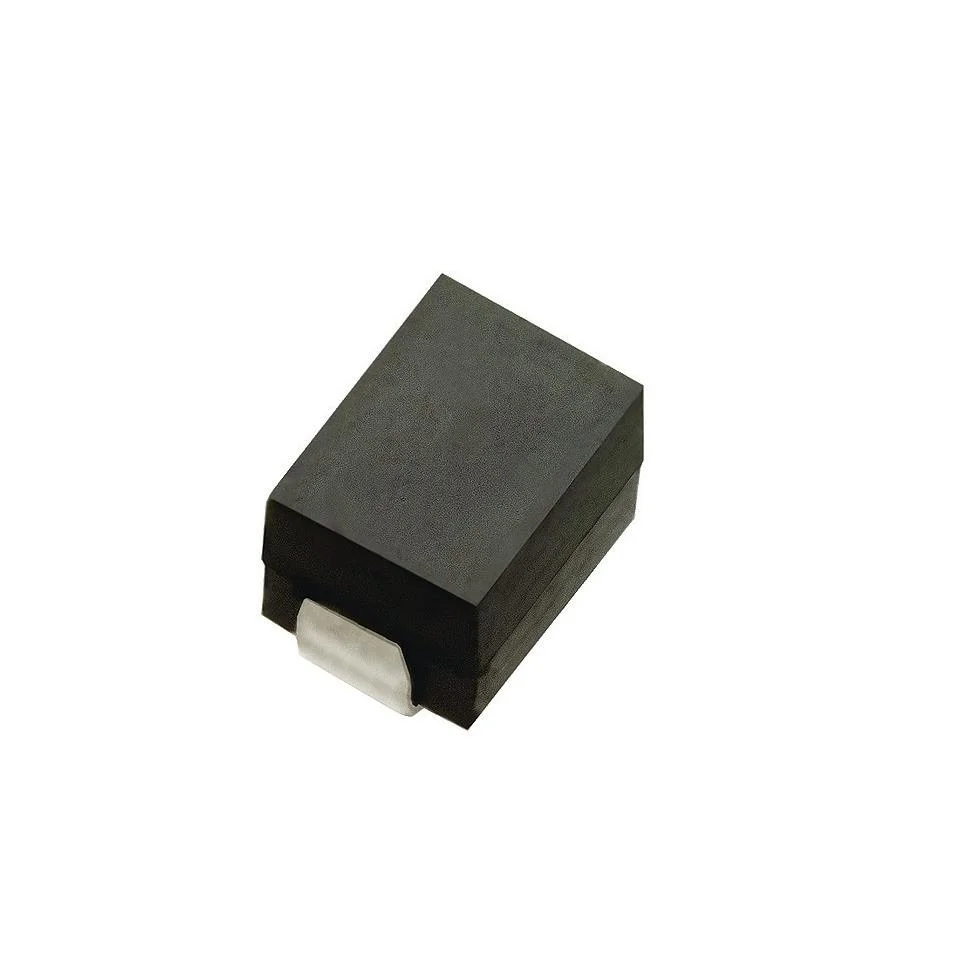

FIXED IND 100NH 1.38A 80 MOHM
Specifications
Inductance
100 nH
Current Rating
1.38 A
DC Resistance (DCR)
80mOhm Max
Dimensions
0.313" L x 0.115" W (7.95mm x 2.92mm)
Product Attributes
Manufacturer Verified
Last verified: 6/15/2026| Inductance | 100 nH |
| Tolerance | ±5% |
| Current Rating | 1.38 A |
| DC Resistance (DCR) | 80mOhm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.313" L x 0.115" W (7.95mm x 2.92mm) |
| Case / Size | 2-SMD |
| Supplier | Delevan |
| Description | FIXED IND 100NH 1.38A 80 MOHM |
| Series | 1330R |
| productStatus | Active |
| typeConstruction | - |
| coreMaterial | Phenolic |
| shielding | Unshielded |
| qFactor | 40 @ 25MHz |
| selfResonantFreq | 680MHz |
| ratings | - |
| testFrequency | 25 MHz |
| mountingType | Surface Mount |
| supplierDevicePackage | - |
| heightMax | 0.145" (3.68mm) |
