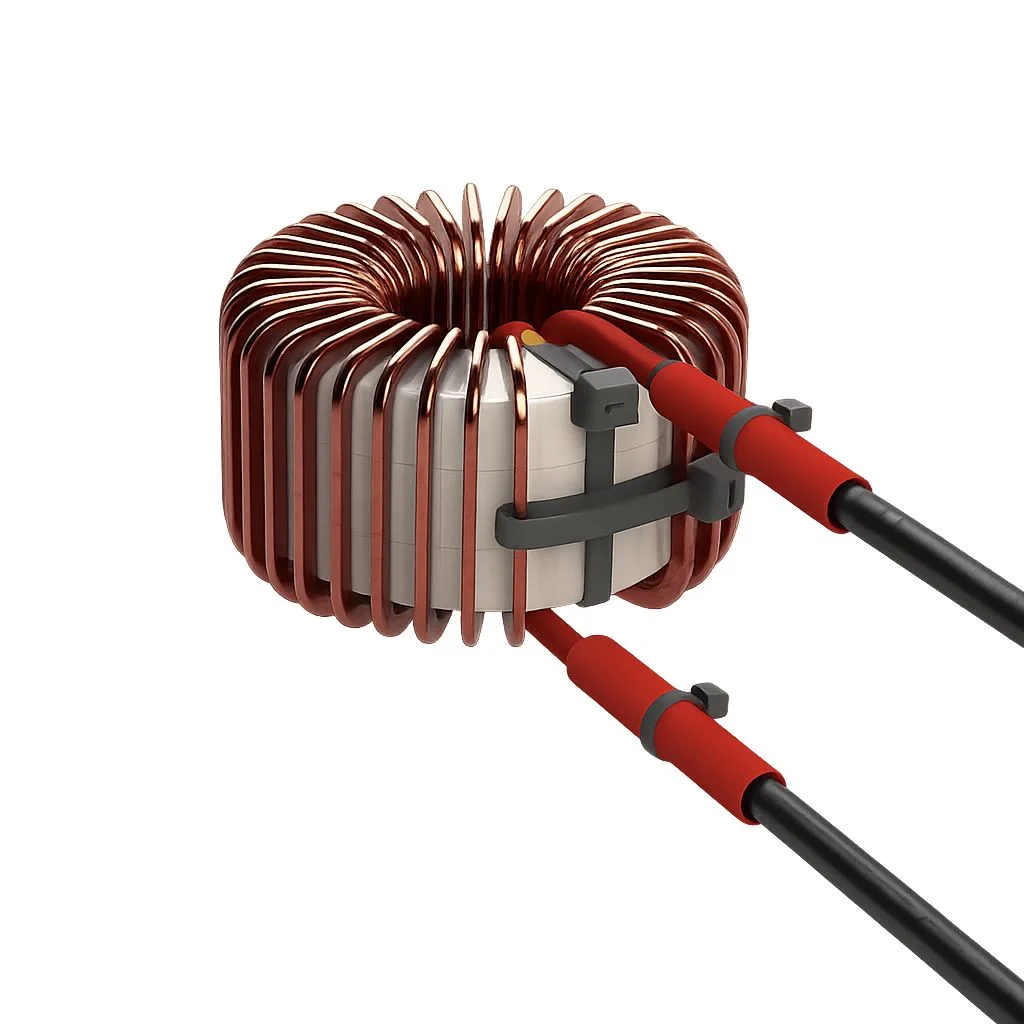

Description
FIXED IND 32UH 125A 2 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 153221.
153221 has an inductance value of 32 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
153221 is rated for 125 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
153221 lists a DC resistance of 2mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
153221 uses a package or case of Vertical, No Base, 2 PC Pin. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 153221 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 32 µH |
| Tolerance | ±20% |
| Current Rating | 125 A |
| DC Resistance (DCR) | 2mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 4.134" Dia (105.00mm) |
| Case / Size | Vertical, No Base, 2 PC Pin |
| Package / Case | Vertical, No Base, 2 PC Pin |
| Supplier | Bourns Inc. |
| Description | FIXED IND 32UH 125A 2 MOHM TH |
| Series | 15322x |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 2.598" (66.00mm) |
