Description

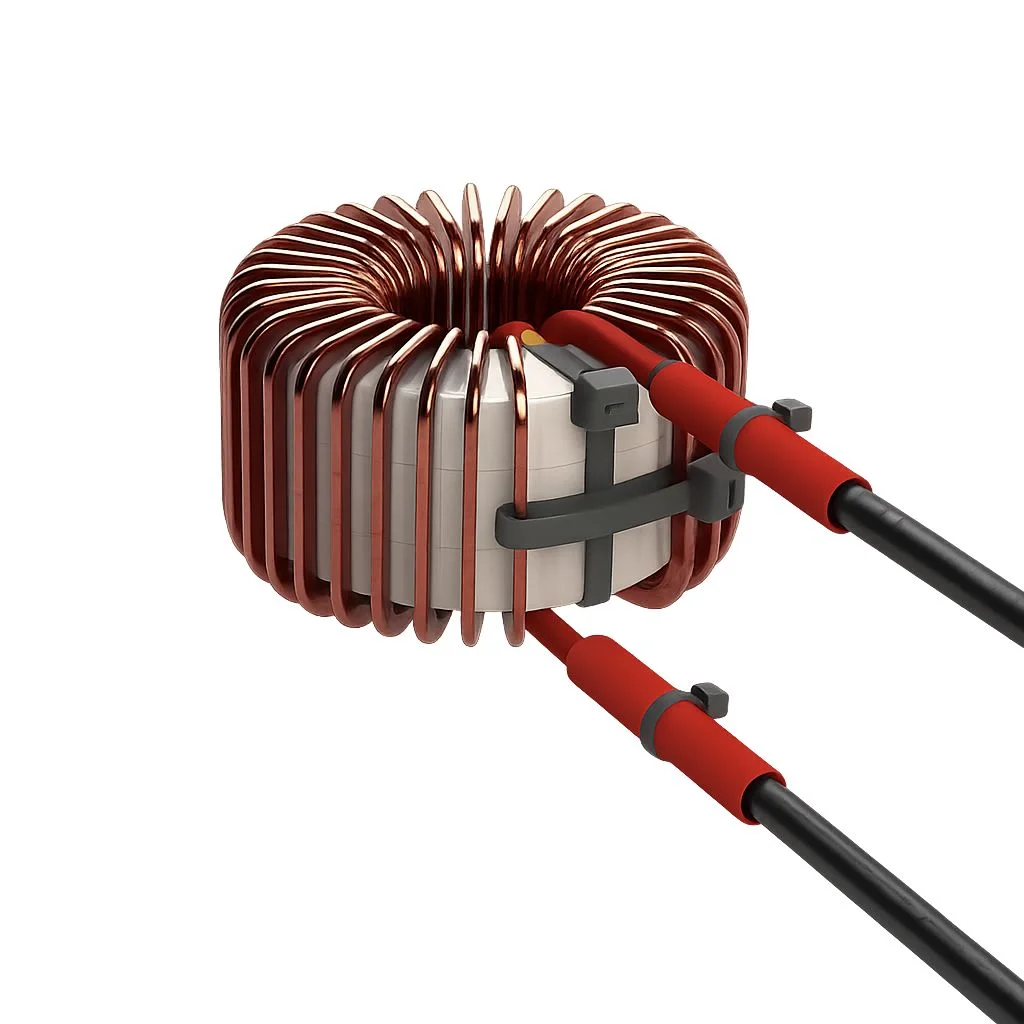

FIXED IND 250UH 50A 13 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 153224.
153224 has an inductance value of 250 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
153224 is rated for 50 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
153224 lists a DC resistance of 13mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
153224 uses a package or case of Vertical, No Base, 2 PC Pin. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 153224 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 250 µH |
| Tolerance | ±20% |
| Current Rating | 50 A |
| DC Resistance (DCR) | 13mOhm Max |
| Operating Temperature | -40°C ~ 125°C |
| Dimensions | 4.134" Dia (105.00mm) |
| Case / Size | Vertical, No Base, 2 PC Pin |
| Package / Case | Vertical, No Base, 2 PC Pin |
| Supplier | Bourns Inc. |
| Description | FIXED IND 250UH 50A 13 MOHM TH |
| Series | 15322x |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Height - Seated (Max) | 2.598" (66.00mm) |
