Description

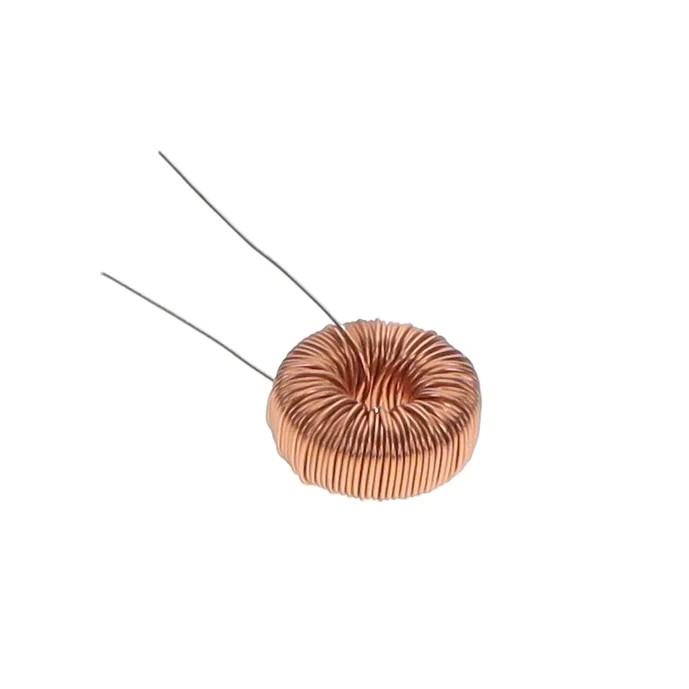

FIXED IND 240UH 1A 380 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 7447040.
7447040 has an inductance value of 240 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
7447040 is rated for 1 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
7447040 lists a DC resistance of 380mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
7447040 uses a package or case of Vertical, No Base, 2 PC Pin. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 7447040 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 240 µH |
| Tolerance | ±20% |
| Current Rating | 1 A |
| DC Resistance (DCR) | 380mOhm Max |
| Operating Temperature | -40°C ~ 105°C |
| Dimensions | 0.453" Dia (11.50mm) |
| Case / Size | Vertical, No Base, 2 PC Pin |
| Package / Case | Vertical, No Base, 2 PC Pin |
| Supplier | Würth Elektronik |
| Description | FIXED IND 240UH 1A 380 MOHM TH |
| Series | WE-FI |
| Product Status | Active |
| Type / Construction | Toroidal |
| Core Material | Iron Powder |
| Shielding | Unshielded |
| Inductance Test Frequency | 10 kHz |
| Mounting Type | Through Hole |
| Supplier Device Package | Vertical, No Base, 2 PC Pin |
| Height - Seated (Max) | 0.272" (6.90mm) |
