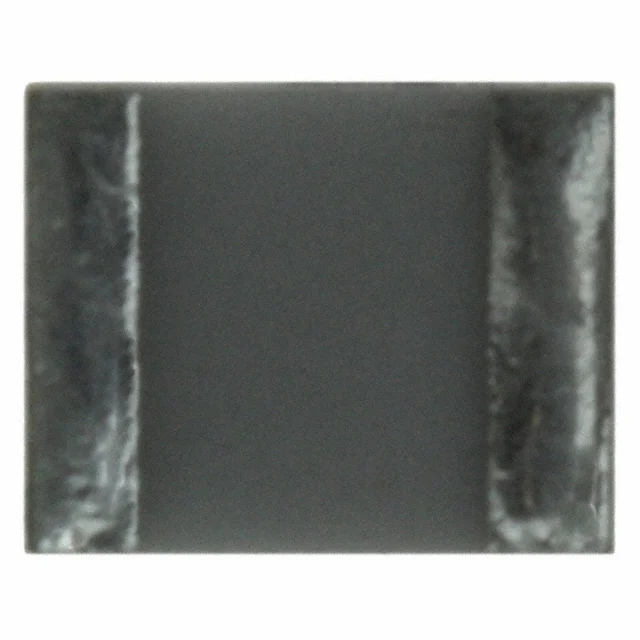

Description
FIXED IND 470NH 835MA 180 MOHM
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 160-471KS.
160-471KS has an inductance value of 470 nH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
160-471KS is rated for 835 mA. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
160-471KS lists a DC resistance of 180mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
160-471KS uses a package or case of Nonstandard. Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 160-471KS to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 470 nH |
| Tolerance | ±10% |
| Current Rating | 835 mA |
| DC Resistance (DCR) | 180mOhm Max |
| Saturation Current | - |
| Operating Temperature | -55°C ~ 125°C |
| Dimensions | 0.150" L x 0.120" W (3.81mm x 3.05mm) |
| Case / Size | Nonstandard |
| Package / Case | Nonstandard |
| Supplier | Delevan |
| Description | FIXED IND 470NH 835MA 180 MOHM |
| Series | 160 |
| Product Status | Active |
| Type / Construction | - |
| Core Material | Iron |
| Shielding | Unshielded |
| Q @ Frequency | 50 @ 25MHz |
| Self Resonant Frequency | 190MHz |
| Ratings | - |
| Inductance Test Frequency | 25 MHz |
| Mounting Type | Surface Mount |
| Supplier Device Package | - |
| Height - Seated (Max) | 0.080" (2.03mm) |
