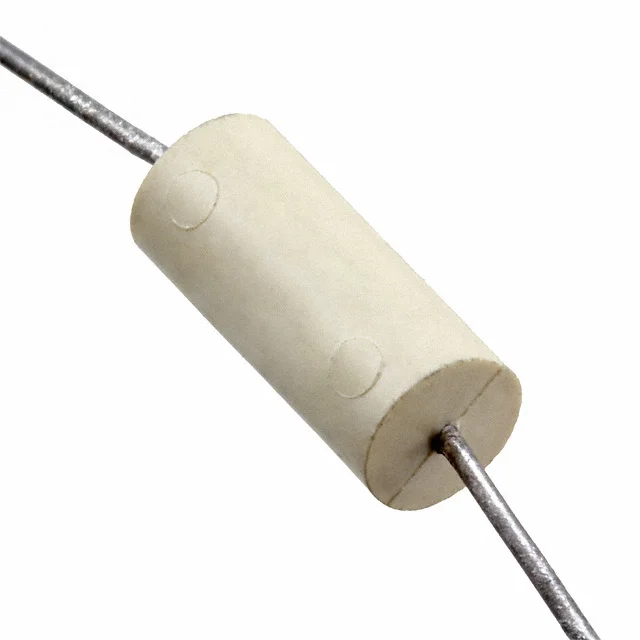

FIXED IND 470UH 108MA 11 OHM TH
| Inductance | 470 µH |
| Tolerance | ±5% |
| Current Rating | 108 mA |
| DC Resistance (DCR) | 11Ohm Max |
| saturationCurrent | - |
| Operating Temperature | -55°C ~ 105°C |
| Dimensions | 0.190" Dia x 0.440" L (4.83mm x 11.18mm) |
| Case / Size | Axial |
| Supplier | Delevan |
| Description | FIXED IND 470UH 108MA 11 OHM TH |
| Series | Military, MIL-PRF-M15305, MS90539 |
| productStatus | Active |
| typeConstruction | Molded |
| coreMaterial | Iron |
| shielding | Unshielded |
| qFactor | 65 @ 790kHz |
| selfResonantFreq | 4MHz |
| ratings | - |
| testFrequency | 790 kHz |
| mountingType | Through Hole |
| supplierDevicePackage | - |
| heightMax | - |
| features | https://www.digikey.com/en/products/detail/delevan/2500-12J/3479911 |
