Description

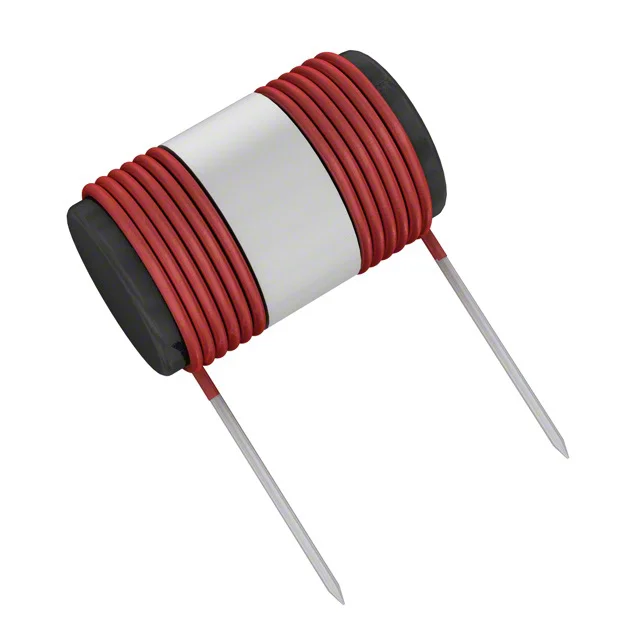

FIXED IND 150UH 3A 75 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 3HC-150.
3HC-150 has an inductance value of 150 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
3HC-150 is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
3HC-150 lists a DC resistance of 75mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
3HC-150 uses a package or case of Radial, Horizontal Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 3HC-150 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 150 µH |
| Tolerance | ±10% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 75mOhm Max |
| Saturation Current | 5A |
| Dimensions | 0.812" Dia x 1.375" L (20.62mm x 34.93mm) |
| Case / Size | Radial, Horizontal Cylinder (Open) |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Supplier | Delevan |
| Description | FIXED IND 150UH 3A 75 MOHM TH |
| Series | HC |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
