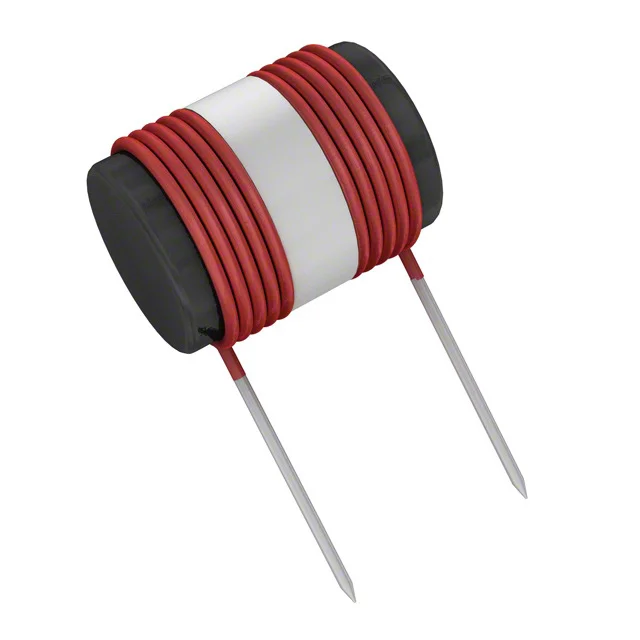

Description
FIXED IND 50UH 3A 50 MOHM TH
Specifications
Parameter Guide
Understand the key electrical and mechanical specifications for 3HC-50.
3HC-50 has an inductance value of 50 µH. This value indicates how much magnetic energy the component can store and is one of the first parameters to compare when selecting an inductor.
3HC-50 is rated for 3 A. Current rating helps determine whether the part can carry the expected DC or RMS current without excessive heating or saturation risk.
3HC-50 lists a DC resistance of 50mOhm Max. Lower DCR usually reduces conduction loss and improves efficiency in power circuits.
3HC-50 uses a package or case of Radial, Horizontal Cylinder (Open). Package size affects PCB footprint, height clearance, thermal behavior, and compatibility with automated assembly.
Explore Related Datasheet Paths
Continue from 3HC-50 to manufacturer, series, and broader datasheet collections.
Product Attributes
| Inductance | 50 µH |
| Tolerance | ±10% |
| Current Rating | 3 A |
| DC Resistance (DCR) | 50mOhm Max |
| Saturation Current | 12A |
| Dimensions | 0.812" Dia x 1.125" L (20.62mm x 28.58mm) |
| Case / Size | Radial, Horizontal Cylinder (Open) |
| Package / Case | Radial, Horizontal Cylinder (Open) |
| Supplier | Delevan |
| Description | FIXED IND 50UH 3A 50 MOHM TH |
| Series | HC |
| Product Status | Active |
| Type / Construction | Drum Core, Wirewound |
| Core Material | Ferrite |
| Shielding | Unshielded |
| Inductance Test Frequency | 1 kHz |
| Mounting Type | Through Hole |
